SmartBond TINY™ DA14535 Bluetooth® Low Energy 5.3 SoC Development Kit Pro
The DA14535-00FXDEVKT-P Bluetooth Low Energy Development Kit Pro for the DA14535 SmartBond TINY™ SoC includes a motherboard, daughterboard and cables. This kit is...
Overview
Description

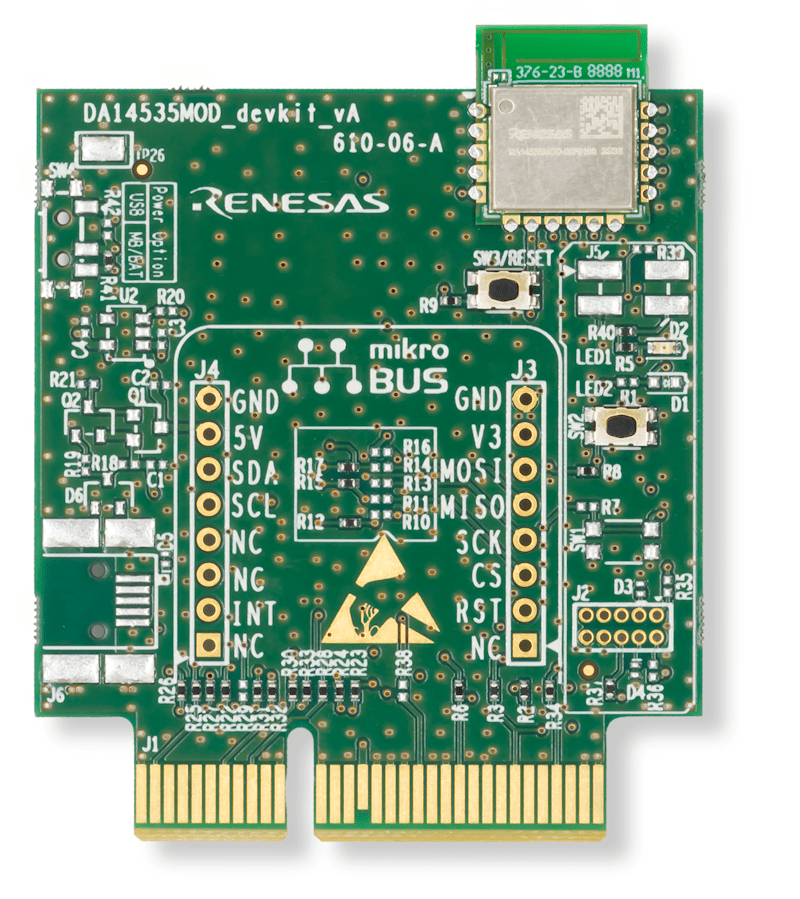

The DA14535 daughterboard features an integrated semiconductor DA14535 SmartBond TINY™ module. The DA14535 SmartBond TINY™ module daughterboard has the capability of mounting a MikroBUS™ module. The purpose of this daughterboard is to provide users with the following capabilities:
- Access to the DA14535 SMARTBOND TINY™ MODULE, via UART or JTAG
- Connecting MikroBUS™ module
- User access to general purpose LED(s)
- User access general purpose button(s)
- Reset button
- Test points for all output signals
- Stand-alone operation
The DA14535 SmartBond TINY™ Module, based on the world’s smallest and lowest power Bluetooth 5.3 system-on-chip, brings the DA14535 SoC advantages to an integrated module. It just requires a power supply and a printed circuit board to build a Bluetooth application.
Features
- 32MHz crystal
- RF matching & embedded printed antenna
- PCB placeholder for CR2032 battery clip
- PCB placeholder for RF co-axial connector
- PCB placeholder for 32kHz crystal
- PCB placeholder for alternative flash IC
Applications
Applications
- Rapid/simple ‘bolt-on’ to upgrade (any) product to include Bluetooth LE (enabling smartphone application control)
- Disposables
- Beacons
- Proximity tags and trackers
- Wireless sensor nodes
- Fitness trackers
- Consumer health
- Smartwatches
- Human interface devices (HID)
- Stylus pens
- Keyboards
- Mouse devices
- Trackpads
- Toys
