Overview
Description
The 5PB1108 is a high-performance 1:8 LVCMOS clock buffer. It has best-in-class Additive Phase Jitter of 50 fsec RMS.
The 5PB1108 also supports an Output Enable function. It is available in 16-pin QFN and TSSOP packages and can operate from a 1.8 V to 3.3 V supply.
Features
- High performance 1:8 LVCMOS clock buffer
- Very low pin-to-pin skew <50 ps
- Very low additive jitter <50 fs
- Supply voltage: 1.8 V to 3.3 V
- fmax = 200 MHz
- Integrated serial termination for 50ohm channel

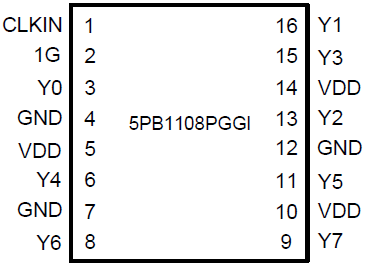

- Packaged in 16-pin TSSOP and small QFN packages
- Extended (-40°C to +105°C) temperature range
Comparison
Applications
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Videos & Training
5PB11xx Ultra Low Jitter LVCMOS Buffers
This video provides an overview of the LVCMOS High Performance Clock Buffer Family, highlighting their key features and capabilities.
