概要

The P9221-R is a highly-integrated, Qi-compliant wireless power receiver targeted for 15W applications. Using magnetic inductive charging technology, the receiver converts an AC power signal from a resonant tank into a regulated 9V or 12V DC output voltage. The integrated, low-RDS(ON) synchronous rectifier and ultra-low-dropout regulator offer high-efficiency, making the product ideal for battery-operated applications.

The receiver includes a 32-bit ARM Cortex®-M0 processor offering a high level of programmability. The device outputs proprietary alignment guide information for optimum coupling between the receiver and the transmitter, and features a programmable current limit. The innovative over-voltage protection scheme eliminates the need for additional capacitors generally required by other receivers, minimizing the external component count and cost. Together with the P9242-R transmitter, the P9221-R is a complete wireless power system solution for 15W applications. The P9221-R is available in a space-saving 2.64 × 3.94 mm 52-WLCSP package. It is rated for the -40°C to 85°C ambient operating temperature range.

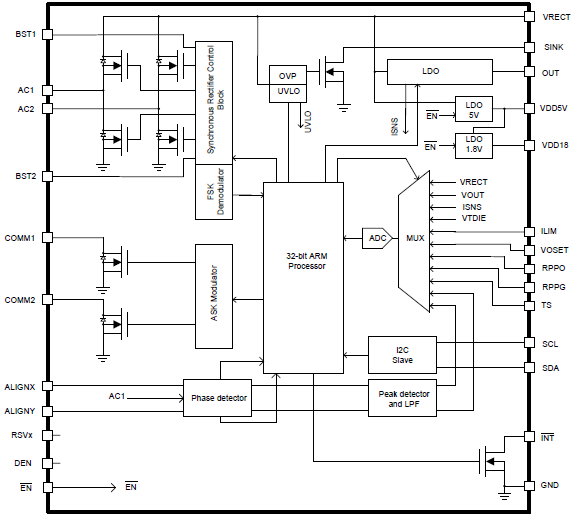

P9221-R Block Diagram

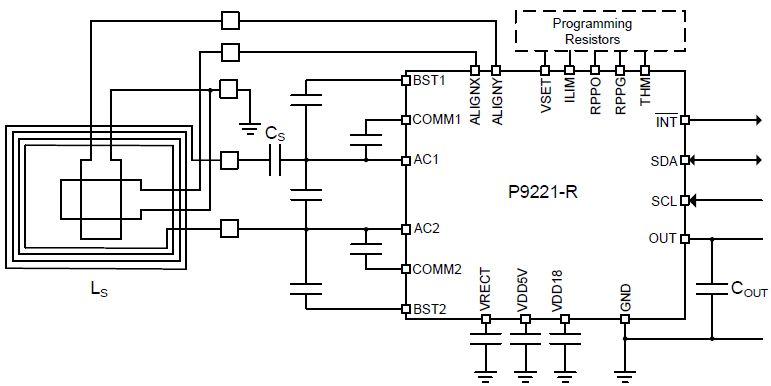

P9221-R Application Circuit
P9221-R Pinout
P9221-R Block Diagram
P9221-R Application Circuit
P9221-R Pinout
  • Single-chip, 15W, wireless power receiver
  • WPC 1.2.2 compliant
  • Full synchronous rectifier with low resistance switches
  • Embedded 32bit ARM® Cortex®-M0 processor
  • Proprietory overvoltage protection eliminating external capacitors
  • Low standby and operating mode power consumption
  • Programmable current limit
  • Supports I2C interface

ドキュメント

設計・開発

ボード＆キット

P9221-R-EVK Board

P9221-R-EVK

Reference
詳しくはこちら

Wireless Power Receiver Reference Solution

The P9221-R-EVK is a turnkey 15 Watt, Qi-compliant wireless power receiver reference kit for fast prototyping and design integration. The kit consists of an easy-to-use...

主要ドキュメント:
P9221-R MM EVK User Manual
P9242-R-EVK Board

P9242-R-EVK

Reference
詳しくはこちら

Wireless Power Transmitter Reference Solution

The P9242-R-EVK is a turnkey 15 Watt, Qi-compliant wireless power transmitter reference kit for fast prototyping and design integration. The kit consists of an...

主要ドキュメント:
P9242-R-EVK Evaluation Board User Manual

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Price (USD) | 1ku
    ご購入 / サンプル
    型名
    P9221-RAHGI8
    circle新規採用非推奨品
    memory
    view_in_ar
    サンプル入手可能
    		 WLCSP 52 I Yes Reel 7.51 サンプルを入手,
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
    IDT Wireless Power Reference Design Overview

    An overview of IDT's wireless power reference designs for 5W and 15W applications. Specific reference designs cover automotive, bi-directional communication, and extended power profile (EPP) solutions for iOS and Android smartphone devices.

    For more information about IDT's industry-leading wireless power solutions, visit www.idt.com/wirelesspower.
