Processing table
    Subcategory
    Temp. Range
    Pkg. Type
    Lead Count (#)
    Pkg. Dimensions (mm)
    Part Number
    AS3812
    Highly Accurate 16-Channel Integrated Current Sinks for LED Backlighting in 4K Ultra HD and HDR LCD Display Applications    		 LED Backlight Drivers 32 QFN 32 5 x 5
    AS3824
    16-Channel Local Dimming LED Backlight Controller    		 LED Backlight Drivers 48 QFN 48 7 x 7
    CD22M3494
    16x8x1 BiMOS-E Crosspoint Switch    		 Unbuffered Video Crosspoint Switches -40 to +85°C PLCC 44 16.5 x 16.5 x 0.00
    D2-24044
    Digital Audio Amplifier Power Stage    		 Audio Integrated Power Stages 0 to +70°C TSSOP-EP 38 9.7 x 4.4 x 0.00
    D2-92633
    Intelligent Digital Amplifier and Sound Processor    		 Digital Sound Processors See Datasheet LQFP 128 14.0 x 14.0 x 1.40
    D2-92634
    Intelligent Digital Amplifier and Sound Processor    		 Decoding Sound Processors See Datasheet LQFP 128 14.0 x 14.0 x 1.40
    D2-92643
    Intelligent Digital Amplifier and Sound Processor    		 Decoding Sound Processors LQFP 128 14.0 x 14.0 x 1.40
    D2-92683
    Intelligent Digital Amplifier and Sound Processor    		 Decoding Sound Processors See Datasheet QFN 72 10.0 x 10.0 x 0.90
    D2-92684
    Intelligent Digital Amplifier and Sound Processor    		 Decoding Sound Processors See Datasheet QFN 72 10.0 x 10.0 x 0.90
    DA14195
    SmartBeat™ Low Power Peripheral Audio Solution     		USB Audio WLSCP-81 81 4.045 x 3.820
    DA14495
    SmartBeat™ Low-Power 1.9GHz DECT Evolution and Audio Solution     		DECT -20 to 60°C SOC 116 7x 7
    DA14AVDDECT
    Audio Voice Data Module    		 DECT -20 to 60°C MOD 169 17 x 26.65
    DA7202
    8W Mono Class D Amplifier for 2S Battery-Operated Portable Devices    		 Audio Integrated Power Stages 9-WLCSP 1.73 x 1.54
    DA7211
    Ultra-Low Power 1.8V Stereo Audio Codec with True-GND Headphone Driver    		 Audio Codecs 36-WLCSP 2.96 x 3.19
    DA7212
    Ultra-Low Power Stereo Codec with 650µW Always-On Power Mode    		 Audio Codecs 34-WLCSP 4.54 x 1.66
    DA7217
    Ultra-Low Power Stereo Codec with Differential Headphone Driver    		 Audio Codecs 32-WLCSP 4.56 x 1.98
    DA7218
    Ultra-Low Power Stereo Codec with Single-Ended Headphone Driver    		 Audio Codecs 32-WLCSP 4.56 x 1.98
    DA7219
    Audio Codec with Advanced Accessory Detect    		 Audio Codecs 32-WLCSP 4.5 x 1.6
    DA7400
    Stereo HP CODEC for Consumer Applications Requiring Hi Res Audio and High Performance    		 Audio Codecs 32-WLCSP
    DA7401
    High-Performance, Ultra-Low Power Mono Hi-Fi Codec    		 Audio Codecs 32-WLCSP
    DA7402
    High-performance, Ultra-low-power Stereo Hi-fi Codec With Wideband Digital ANC    		 Audio Codecs 32-WLCSP
    DA7403
    Active Noise Cancellation and Beamforming Codec    		 Audio & Video 32-WLCSP
    DA7413
    Mono Codec with Wideband Digital Hybrid Active Noise Cancellation    		 Audio Codecs 32-WLCSP 3.42 x 1.77

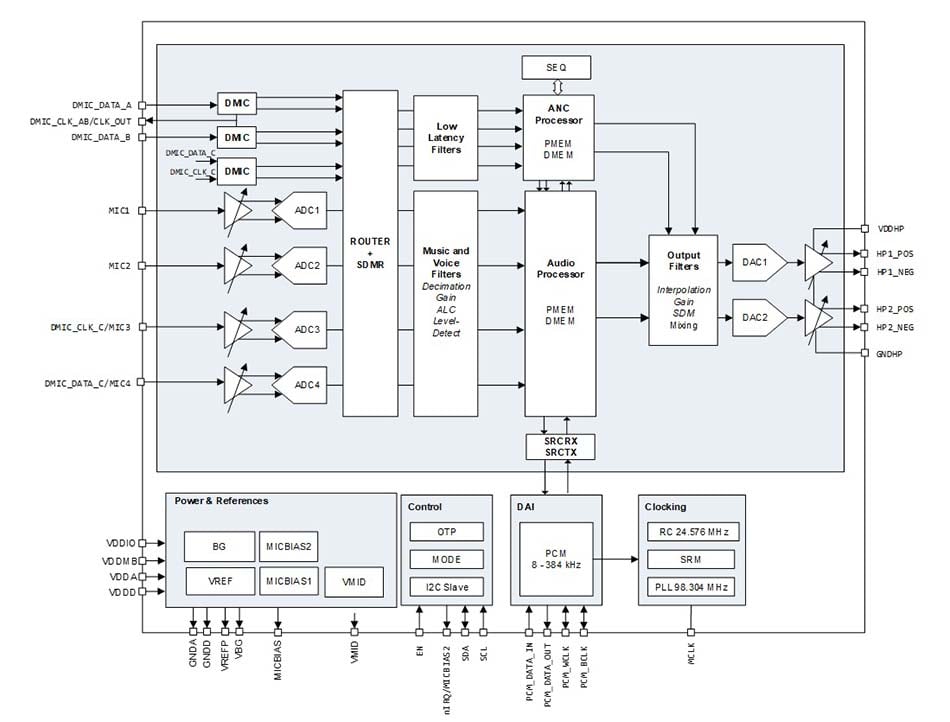

    DA7414
    Stereo Codec with Wideband Digital Hybrid Active Noise Cancellation    		 Audio Codecs 32-WLCSP 3.42 x 1.77
    EL4340
    500MHz Triple, Multiplexing Amplifier    		 Video Switches & Multiplexers -40 to +85°C QSOP 24 8.6 x 3.9 x 1.55

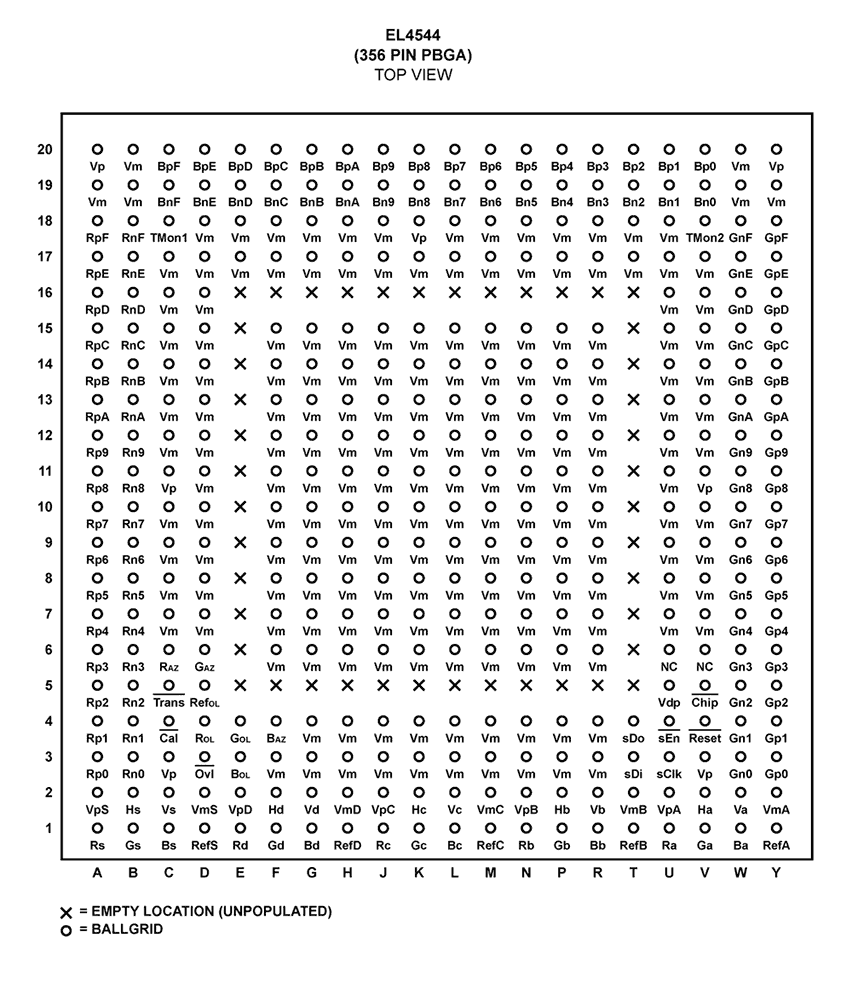

    EL4544
    Triple 16x5 Differential Crosspoint Switch Capable of Operation in Single-Ended or Differential Input Modes    		 Buffered Video Crosspoints -40 to +85°C PBGA 356 27.0 x 27.0 x 0.00
    ISL54214
    USB 2.0 High-Speed x 2 Channels/Stereo Audio Dual SP3T (Dual 3-to-1 Multiplexer)    		 USB Audio Switches -40 to +85°C TQFN, uTQFN 12 2.2 x 1.4 x 0.00, 3.0 x 3.0 x 0.75
    ISL59601
    MegaQ™: An Automatic Composite Video Equalizer, Fully-Adaptive to 1 Mile (1600m)    		 CAT-5 MegaQ Compensation -40 to +85°C QFN 20 4.0 x 4.0 x 0.90
    ISL59910
    Triple Differential Receiver/Equalizer    		 CAT-5 Frequency Compensation -40 to +85°C QFN 28 4.0 x 5.0 x 0.90
    ISL59913
    Triple Differential Receiver/Equalizer    		 CAT-5 Frequency Compensation -40 to +85°C QFN 28 4.0 x 5.0 x 0.90
    ISL78171
    6-Channel, 50mA Automotive LED Driver with Ultra-High Dimming Ratio and Phase Shift Control    		 Automotive LED Backlight Drivers -40 to +105°C QFN 20 4.0 x 3.0 x 0.90
    ISL78419
    Integrated Automotive TFT-LCD Power Supply Regulator    		 MCU PMIC -40 to +105°C QFN 28 4.0 x 5.0 x 0.90
    ISL79987
    4-Channel Differential Input Video Decoder with MIPI-CSI2 Output for Around View Applications    		 Automotive Video Decoders -40 to +85°C, -40 to +105°C QFN 48 7.0 x 7.0 x 0.85
    ISL79988
    4-Channel Differential Input Video Decoder with BT.656 Output for Around View Applications    		 Automotive Video Decoders -40 to +85°C, -40 to +105°C QFN 48 7.0 x 7.0 x 0.85
    ISL97634
    White LED Driver with PWM Dimming    		 LED Backlight Drivers -40 to +85°C TDFN 8 2.0 x 3.0 x 0.75
    ISL97645A
    Boost + VON Slice + VCOM + Reset    		 Integrated TFT-LCD DC-DC Regulators -40 to +85°C QFN 24 4.0 x 4.0 x 0.90
    ISL97649AR5566
    TFT-LCD Supply + DCP + VCOM Amplifier + Gate Pulse Modulator + RESET    		 Integrated TFT-LCD DC-DC Regulators -40 to +85°C QFN 28 5.0 x 4.0 x 0.90
    ISL97671A
    6-Channel SMBus/I2C or PWM Dimming LED Driver with Phase Shift Control    		 LED Backlight Drivers -40 to +85°C QFN 20 4.0 x 3.0 x 0.90
    ISL97672B
    6-Channel LED Driver with Ultra Low Dimming Capability    		 LED Backlight Drivers -40 to +85°C QFN 20 4.0 x 3.0 x 0.90
    ISL97673
    6-Channel SMBus or PWM Dimming LED Driver with Phase Shift Control    		 LED Backlight Drivers -40 to +85°C QFN 20 4.0 x 3.0 x 0.90

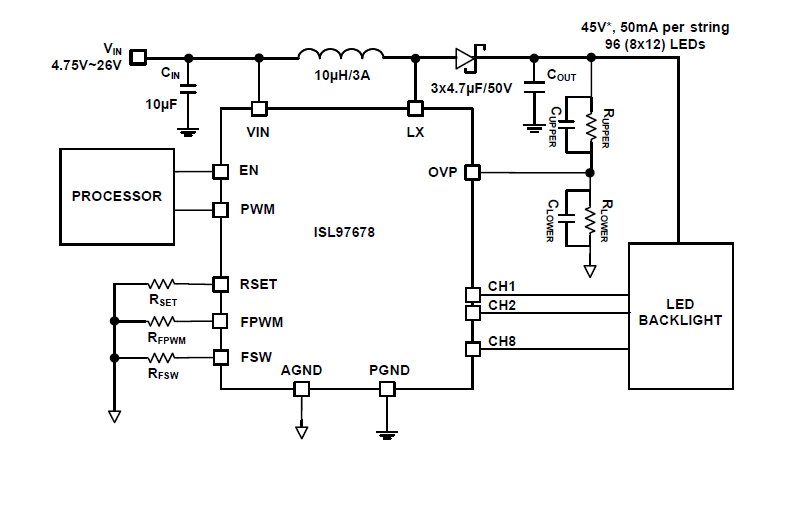

    ISL97678
    8-Channel 45V 50mA LED Driver    		 LED Backlight Drivers -40 to +85°C QFN 32 5.0 x 5.0 x 0.90
    ISL97682
    Compact 2-Ch LED Drivers with Phase Shift Control    		 LED Backlight Drivers -40 to +85°C TQFN 16 3.0 x 3.0 x 0.75
    ISL97683
    Compact 3-Ch LED Drivers with Phase Shift Control    		 LED Backlight Drivers -40 to +85°C TQFN 16 3.0 x 3.0 x 0.75
    ISL97684
    Compact 4-Ch LED Drivers with Phase Shift Control    		 LED Backlight Drivers -40 to +85°C TQFN 16 3.0 x 3.0 x 0.75
    ISL97687
    4-Channel LED Driver with Phase Shift Control and 10-Bit Dimming Resolution    		 LED Backlight Drivers -40 to +105°C SOICW, TQFN 28 5.0 x 5.0 x 0.75, 17.9 x 7.5 x 0.20
    ISL97692
    Single or Multiple Cell Li-ion Battery Powered 4-Channel LED Driver    		 LED Backlight Drivers -40 to +85°C TQFN 16 3.0 x 3.0 x 0.75
    ISL97693
    Single or Multiple Cell Li-ion Battery Powered 6-Channel LED Driver    		 LED Backlight Drivers -40 to +85°C TQFN 16 3.0 x 3.0 x 0.75
    ISL97694A
    Single or Multiple Cell Li-ion Battery Powered 6-Channel LED Drivers    		 LED Backlight Drivers -40 to +85°C TQFN 20 4.0 x 3.0 x 0.75

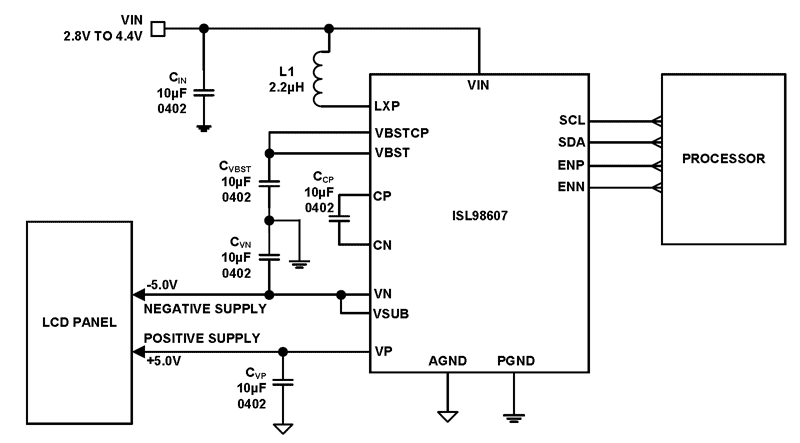

    ISL98607
    High Efficiency Power Supply for Small Size Displays    		 Integrated TFT-LCD DC-DC Regulators TQFN 20 4.0 x 3.0 x 0.75
    ISL98608
    High Efficiency Power Supplies for Small Size Displays    		 Integrated TFT-LCD DC-DC Regulators -40 to +85°C WLCSP-BP 16 1.7 x 1.7 x 0.00
