8SLVP2104I

Active

Dual 1:4, 3.3V, 2.5V LVPECL Output Fanout Buffer

Order Now
8SLVP2104 Datasheet

Overview

The 8SLVP2104I is a high-performance differential dual LVPECL fanout buffer. The device is designed for the fanout of high-frequency, very low additive phase-noise clock and data signals. The 8SLVP2104I is characterized to operate from a 3.3V or 2.5V power supply. Guaranteed output-to-output and part-to-part skew characteristics make the 8SLVP2104I ideal for those clock distribution applications demanding well-defined performance and repeatability. Two selectable differential inputs and four low skew outputs are available. The integrated bias voltage reference enable easy interfacing of single-ended signals to the device inputs. The device is optimized for low power consumption and low additive phase noise.

8SLVP2104I - Block Diagram

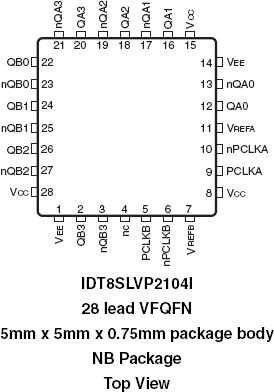

8SLVP2104I - Pinout
8SLVP2104I - Block Diagram
8SLVP2104I - Pinout
  • Two 1:4, low skew, low additive jitter LVPECL output pairs
  • Two differential clock input pairs
  • Differential pairs can accept the following differential input levels: LVDS, LVPECL, CML
  • Maximum input clock frequency: 2GHz
  • Output skew: 8ps (typical)
  • Propagation delay: 270ps (maximum)
  • Low additive phase jitter, RMS: 47fs (maximum)
  • Full 3.3V and 2.5V supply voltage
  • Maximum device current consumption (IEE): 88mA (maximum)
  • Available in lead-free (RoHS 6), 28-Lead VFQFN package
  • -40°C to 85°C ambient operating temperature

  • Supports case temperature ≤105°C operations
