Overview

The GX32424 is a 32Gbps linear quad TIA chip that integrates four lanes of TIAs for XI, XQ, YI, and YQ channels, as well as digital interface circuitry for DC controls on a single die for 100G/200G coherent applications.

The TIA electrical characteristics, functions, and physical dimensions are designed for a small-form factor integrated optical module such as CFP2 and CFP4.

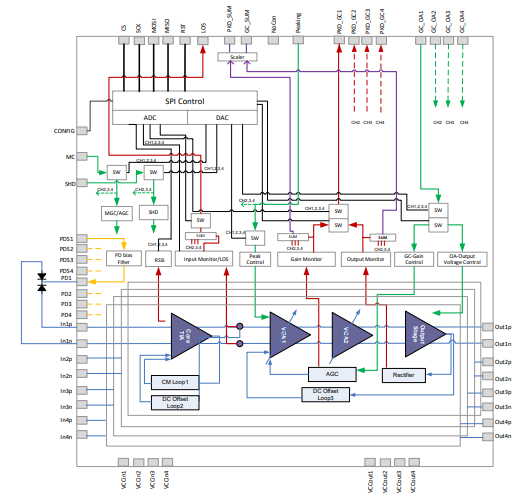

GX32424 - Block Diagram
GX32424 - Block Diagram
  • Quad 32Gbps linear TIA Integrated SPI and analog interface
  • Differential linear gain: 150–5,000Ω, and > 30dB dynamic range
  • 25+GHz adjustable 3dB bandwidth
  • Automatic and manual gain control, Output Voltage Control, Peak Detection, RSSI and Input Current Monitor, and Shutdown functionalities
  • Low THD, low cross-talk, and low power for covering 16QAM applications

Documentation

= Featured Documentation
Type Title Date
Datasheet - Short-form
GX32424 Short-Form Datasheet
PDF 178 KB
Datasheet
GX32424 Datasheet
Log in to Download PDF 646 KB
Product Change Notice
PCN# : 210015 Change of Waffle Pack Label Display
PDF 134 KB
3 items

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Temp. Grade
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Buy / Sample
    Part Number
    GX32424-DNT
    circleActive
    memory
    view_in_ar
    Samples Available
    		 WAFER E WFP 0 Get Samples,
