Overview
Description

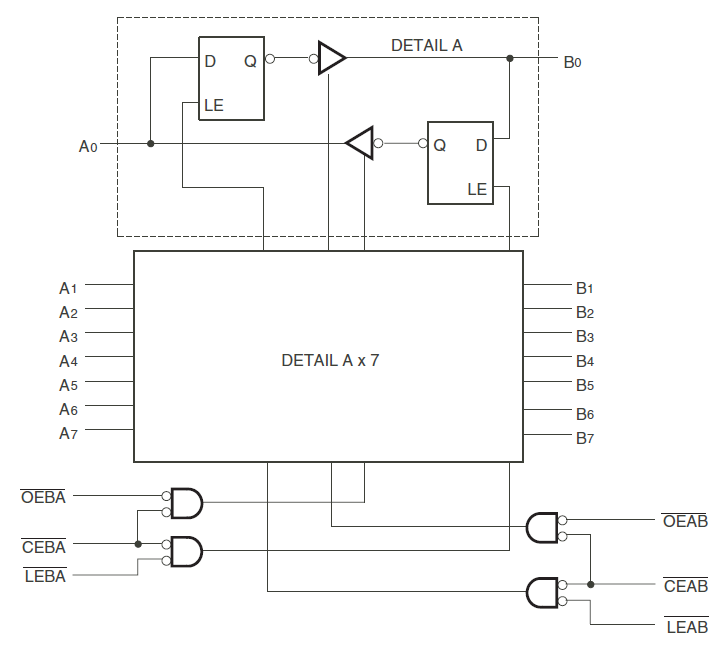

The 74FCT543T is a non-inverting octal transceiver that contains two sets of eight D-type latches with separate input and output controls for each set. The 74FCT543T operate at -40C to +85C
Features
- A and C speeds
- Low input and output leakage ?1 uA (max.)
- CMOS power levels
- True TTL input and output compatibility: – VOH = 3.3V (typ.) – VOL = 0.3V (typ.)
- High Drive outputs (-15mA IOH, 64mA IOL)
- Meets or exceeds JEDEC standard 18 specifications
- Power off disable outputs permit "live insertion"
- Available in 24 pin SOIC and QSOP packages
Comparison
Applications
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| QSOP | 24 | C | Yes | Tube | 0.5079 | ||
| QSOP | 24 | C | Yes | Reel | |||
| SOIC | 24 | C | Yes | Tube | |||
| SOIC | 24 | C | Yes | Reel | |||
| QSOP | 24 | C | Yes | Tube | |||
| QSOP | 24 | C | Yes | Reel | 1.07 | ||
| SOIC | 24 | C | Yes | Tube | |||
| SOIC | 24 | C | Yes | Reel |
