Overview

Description

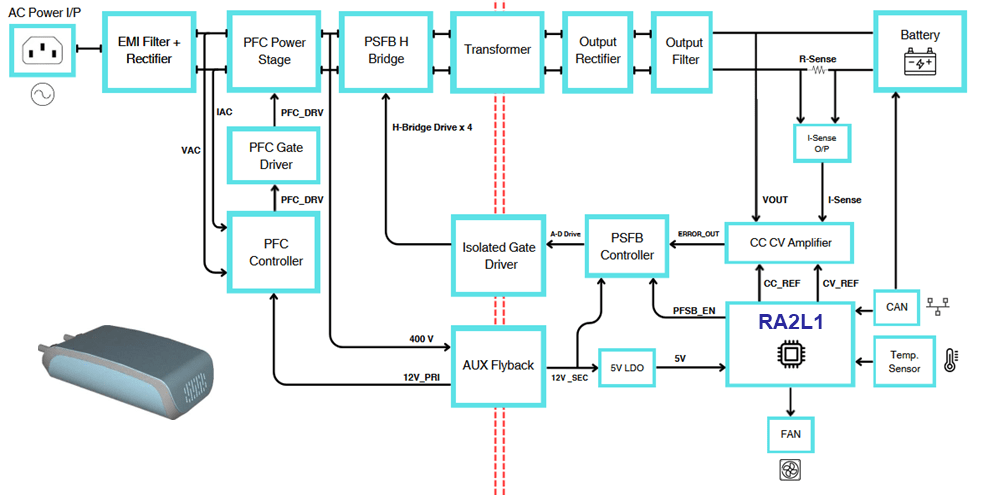

Chakra Fast Battery Chargers provide highly power efficient battery solutions. The solution is designed for Li-ion, LiFePo4 and lead acid batteries. It operates under all types of harsh electrical and thermal environments and gives high power efficiency up to 93% suitable for 2W/3W E-bikes and energy storage applications. Out-of-box support is available for Renesas RA2L1 MCUs.


Features

  • High efficiency of 93% with low ripple of 150mV to increases battery life
  • Output power: 1.5KW, maximum output current: 22A
  • Optimized charging algorithm for Li-ion, LiPeFo4 and Lead acid battery
  • Programmable CC and CV limit with feedback through CAN interface
  • Input AC undervoltage and overvoltage protection, output overvoltage protection, overload protection, over-temperature protection
  • Wide AC power input voltage (85-265V) and temperature range (-45°C to 65°C)

Comparison

Applications

Applications

  • Electric and hybrid mobility
  • Charging station
  • Storage systems

Documentation

Type Title Date
Product Brief PDF 429 KB
1 item
