Overview

The 4mA to 20mA current loop is the dominant standard for sensor systems in many industries, primarily because it is the simplest option to configure and connect. It also uses less wiring and connections than other signals, therefore reducing overall system cost. In addition, in large locations, it is better for traveling long distances, since current doesn't degrade like voltage does. Resistant to surrounding noise, this board design uses a standard 4mA to 20mA loop making it perfect to transmit data over large distances in industrial environments. For enhanced system protection, additional isolation can be added.

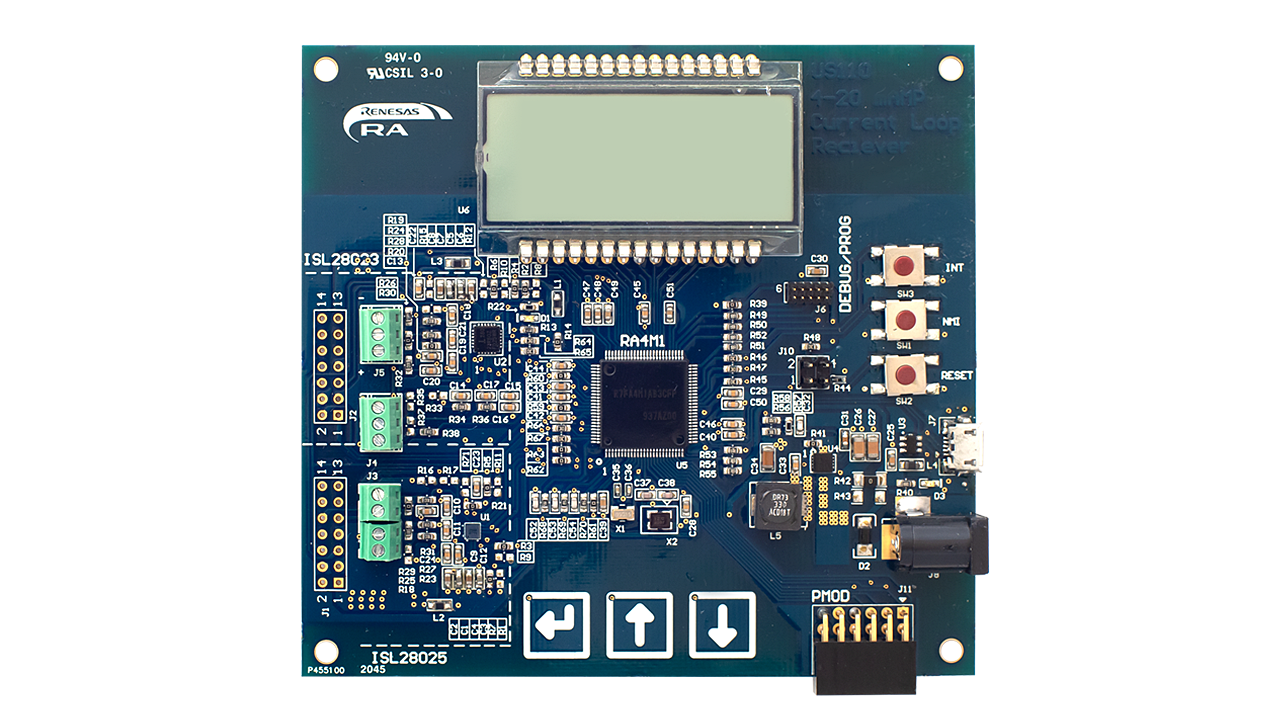

4mA to 20mA Current Loop Receiver Evaluation Board
4mA to 20mA Current Loop Receiver Evaluation Board
  • Simple and accurate readings on a 4mA to 20mA loop
  • 7-segment LCD display for low power
  • System can run off loop power or separate power
  • Pmod™ for optional wireless connectivity

Documentation

= Featured Documentation
Type Title Date
Manual - Hardware
Standard 4-20mA Loop - Industrial Reciever - User Manual
PDF 460 KB
1 item

Design & Development

Software Downloads
Type Title Date
PCB Design Files
Standard 4-20mA Loop - Industrial Reciever - Design Files
Log in to Download ZIP 1.99 MB
Software & Tools - Evaluation Software
Standard 4-20mA Loop - Industrial Reciever - Firmware
Log in to Download ZIP 822 KB
2 items

Lab on the Cloud

Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Standard 4-20mA Loop - Industrial Receiver

This board uses a standard 4-20mA loop to transmit data over large distances in industrial environments. It is resistant to surrounding noise.

Product Options

    Processing table
    Buy / Sample
    Part Number
    US110-420RECEVZ
    circleActive
