Overview
Description
The RZ/N2L Remote I/O Solution Kit is a development kit for evaluating remote I/O applications using the RZ/N2L Gateway Solution Board which is equipped with digital IO interface with photocoupler isolation and analog input and supports industrial network communications such as EtherCAT and EtherNet/IP. In addition, we provide sample programs for industrial network communication and DI/DO.

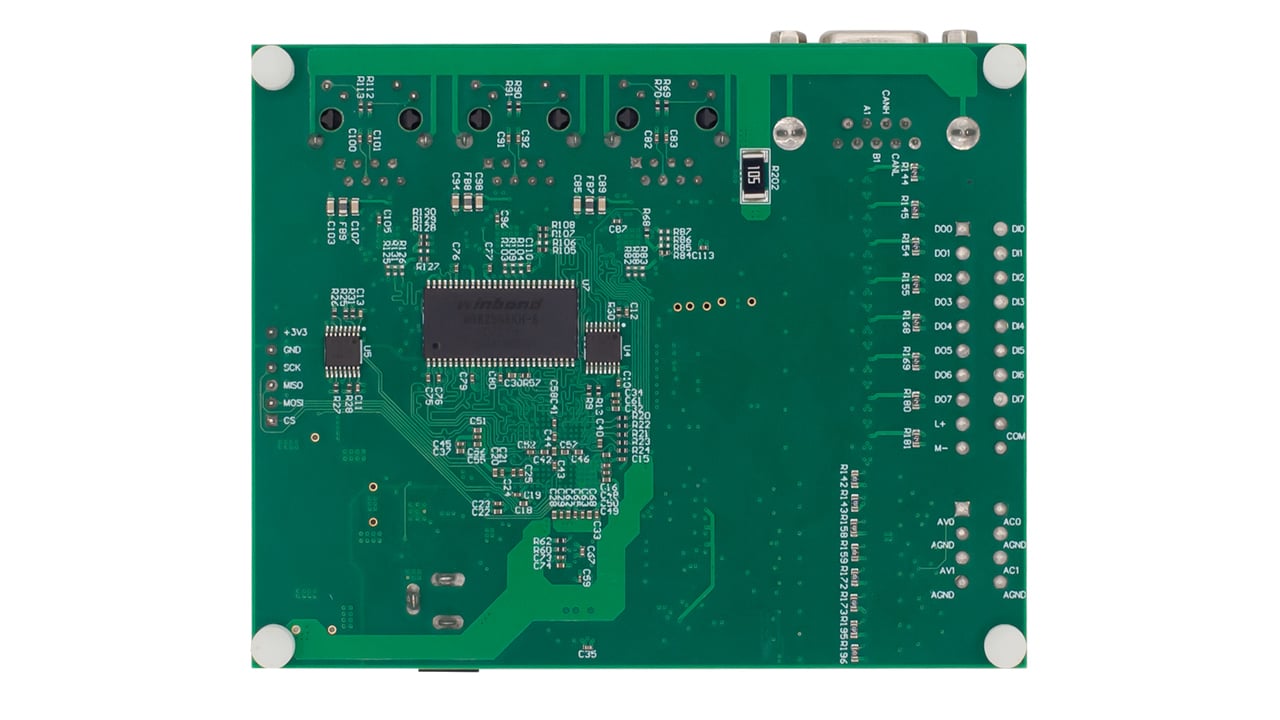

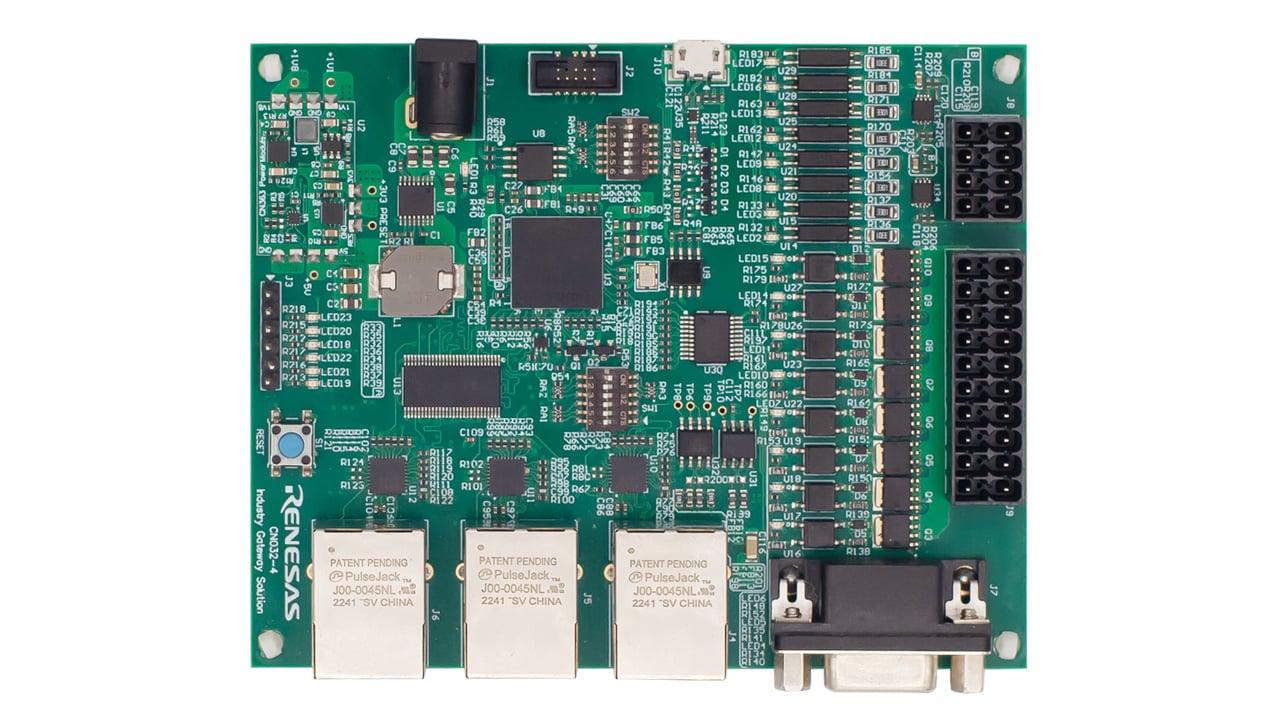

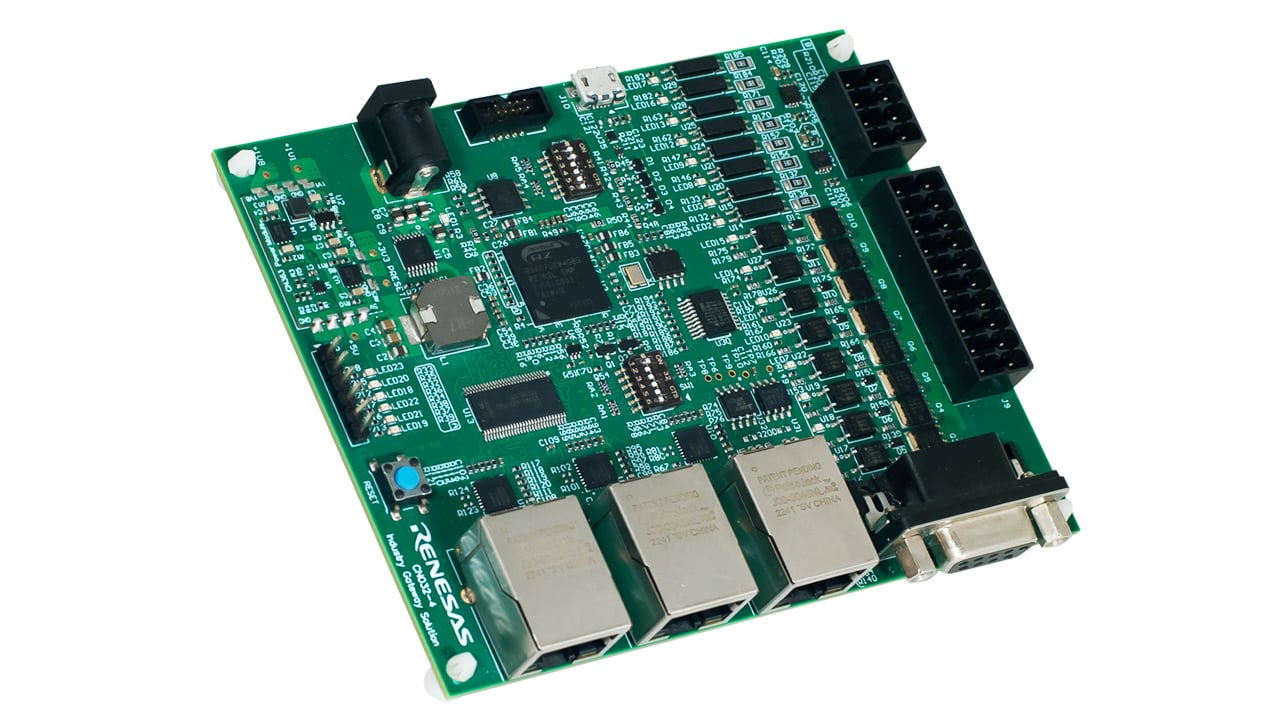

The RZ/N2L Gateway Solution Board is equipped with necessary components such as a power module that supports the RZ/N2L power sequence, transceivers for RS485 and CAN, and Ethernet PHY, and can be used as a reference design.
Features
- Digital IO interface with photocoupler isolation (IN: 8, OUT: 8)
- Analog Input interface (4-20mA: 2, 0-10V: 2)
- Support industrial network protocols: EtherCAT, EtherNet/IP
- Power module compatible with RZ/N2L power on/off sequence
- RS485 Transceiver, CAN Transceiver, D-sub connector
- Ethernet PHY, RJ45 connector
- Memory (Quad SPI flash, EEPROM, SDRAM)
Applications
Applications
- Remote I/O
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 1.55 MB | |
| Release Note | PDF 281 KB | |
| Release Note | PDF 251 KB | |
3 items
|
||
Design & Development
Processing table
CN032-GATEWAYREFZ Active |
