Overview
Description

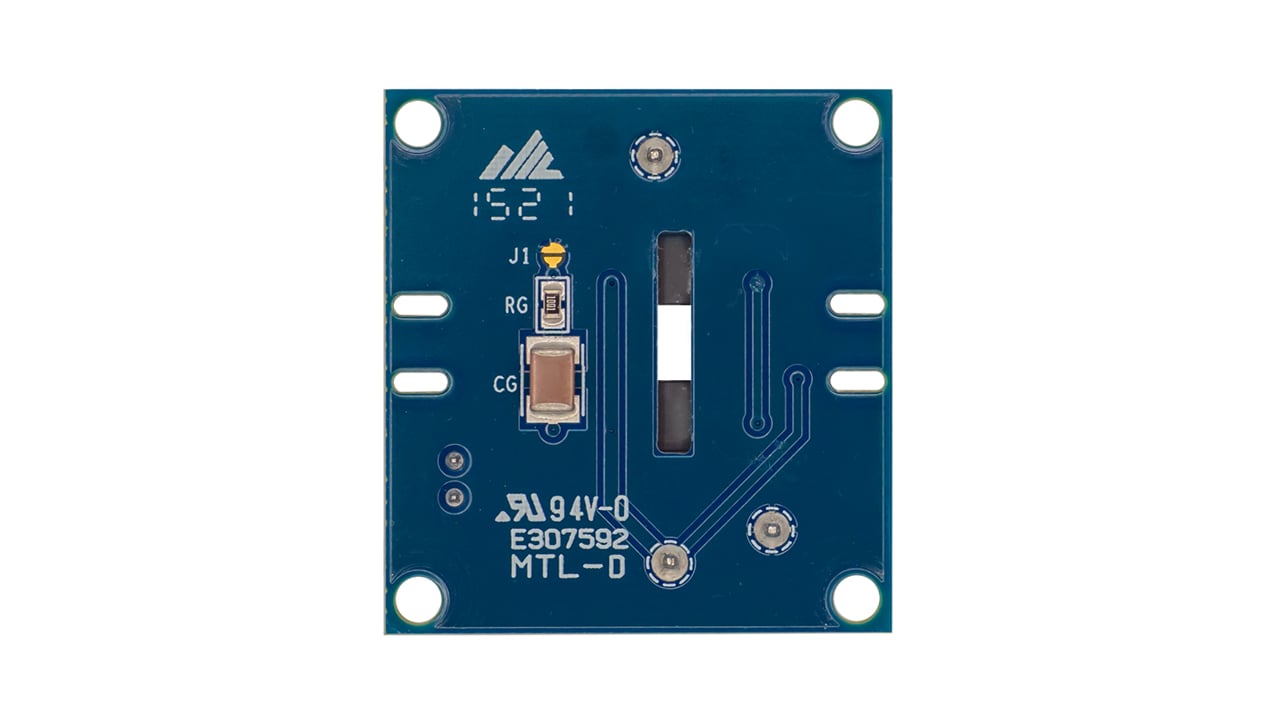

The RTKA788000DE0000BU evaluation board allows for the measurement of power line currents up to 40A.
The board includes two RAA788000 current sensor ICs in an opposite sensor topology and a 1ft section of AWG-8 cable, for easy connection to a high-current source.
The output amplifiers of the two sensors are configured to a single differential amplifier to allow for differential current measurements with minimum noise.
Features
- Two current sensor ICs
- Gain setting of 1400V/V
- Opposite sensor topology
- Differential current measurement up to 40A
- Wide 2.7V to 3.6V supply voltage range
Applications
Applications
- AC current sensor opposite topology
