RAA214038 Low-dropout Linear Regulator (LDO)
The RTKA214038DE0000BU evaluation board provides a simple platform to evaluate the 3.5×3.5mm 20-Ld QFN RAA214038 low-dropout linear regulator (LDO).
RAA214038 is an...
Featured Documents:
Overview
Description

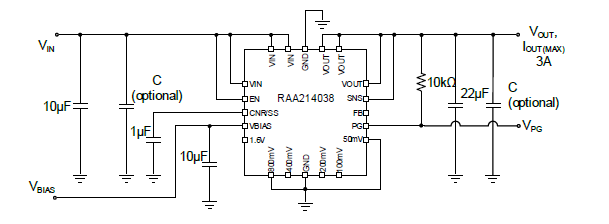

The RAA214038 is an ultra-low noise, high PSRR, low-dropout regulator capable of sourcing up to 3A of load current with only 180mV dropout voltage. It operates from an input voltage of 1.1V for low-voltage applications to 6.5V
The LDO output voltage can be programmed from 0.8V to 3.95V using voltage setting pins on the IC in 50mV steps, eliminating the need for traditional external feedback resistors and saving PCB space. External feedback resistors can still be used for higher output voltage applications, allowing the output voltage to be programmed anywhere from 0.8V to 5.1V.
Features
- Maximum dropout: 180mV at 3A with BIAS
- Output voltage accuracy: ±1%
- Ultra-low output noise: 7μVRMS
- Input voltage range:
- Without BIAS: 1.4V to 6.5V
- With BIAS: 1.1V to 6.5V
- Output voltage range:
- Using voltage set pins: 0.5V to 3.65V
- Using external FB resistors: 0.5V to 5.1V
Comparison
Applications
- Sensor, imaging, and radar
- Instrumentation, medical, audio, and RF power supplies
- Product comparison
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 2.14 MB | |
1 item
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| iSim:PE Offline Simulation Tool iSim Personal Edition (iSim:PE) speeds the design cycle and reduces risk early in any project, identifying parts that can be used in current as well as next-generation designs.
|
Simulator | Renesas |
1 item
|
||
Boards & Kits
RAA214035 Low-dropout Linear Regulator (LDO) Evaluation Board
The RTKA214035DE0000BU evaluation board provides a simple platform to evaluate the 3.5mm x 3.5mm 20-Ld QFN RAA214035 low-dropout linear regulator (LDO).
The RAA214035 is...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
RAA214038GNP#HC0 Active Samples Available |
N/A | QFN | Reel | 1 | Get Samples, | |
RAA214038GNP#MC0 Active Samples Available |
N/A | QFN | Reel | 1 | Get Samples, |
