CN268-IEEE1588POCZ

Active

IEEE 1588 Solution Development Kit

Order Now
IEEE 1588 Solution User's Manual

Overview

This IEEE 1588 Solution development kit demonstrates clock synchronization up to <50nSec between Master and Slave to reconstruct accurate synchronization signals for 5G networks.

IEEE 1588 is a precise time protocol (PTP) system used to synchronize clocks in computer networks. In local area networks, it can control the clock accuracy in the sub-microsecond range, making it suitable for measurement and control systems. With 5G coming, there are a large number of base stations and IoT devices that will require large-scale network synchronization. Renesas' 8A34002 synchronous timing device is designed for IEEE 1588 applications, and our clock recovery algorithms and precision timing devices reconstruct accurate synchronization signals for 5G networks.

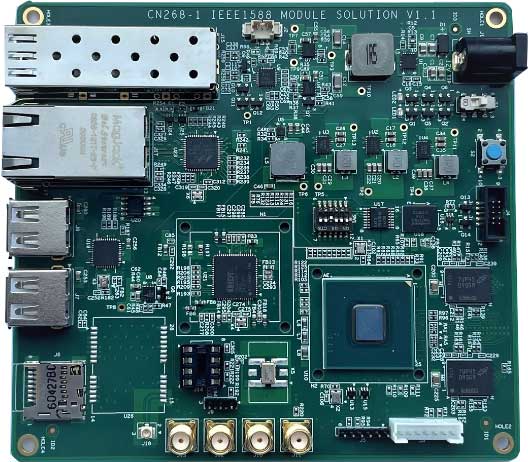

IEEE 1588 Solution Reference Design Board
IEEE 1588 Solution Reference Design Board
  • High-performance MPU and precision timing clock IC
  • Renesas advanced clock recovery algorithms reconstruct accurate synchronization signals for network
  • Optimized power system
  • Support telecom profiles (8275.1, 8265.1, etc.)
  • 5G AAU/BBU/small cell
  • Core and access IP switches/routers
  • Synchronous Ethernet equipment
  • High-accuracy clock systems using IEEE 1588

Documentation

Featured Documentation
Type Title Date
Manual - Hardware
IEEE 1588 Solution User's Manual
PDF 1.62 MB
1 item

Design & Development

Software Downloads
Type Title Date
PCB Design Files
IEEE 1588 Solution Design Files
Log in to Download ZIP 7.15 MB
1 item

Lab on the Cloud

Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
IEEE 1588 Solution

IEEE 1588 solution that demonstrates the clock synchronization up to <50nSec between Master and Slave to reconstruct accurate synchronization signals for 5G networks.
