ADC1004S030

Obsolete

ADC1004S030 demo board

ADC1004S Quick Start Guide

Overview

Our ADC demo board is suitable for dynamic performance evaluations. A data-acquisition board can be used during design and prototype to analyze ADC performance.

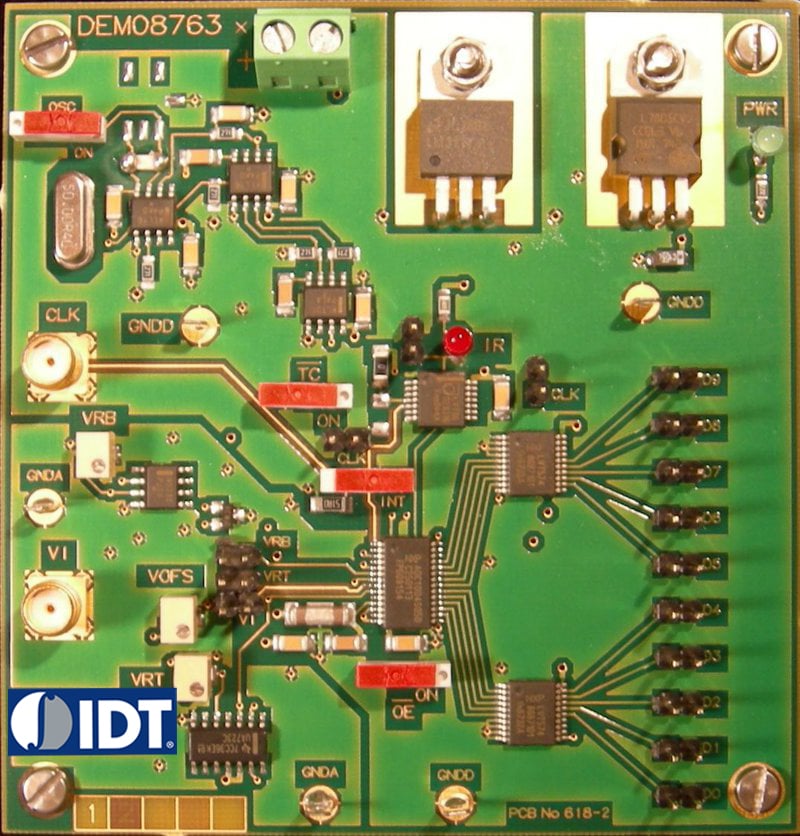

ADC1004S030 - Evaluation Board
ADC1004S030 - Evaluation Board
  • SMA connector for clock and analog inputs signal

Documentation

Featured Documentation
Type Title Date
Manual - Hardware
ADC1004S Quick Start Guide
PDF 314 KB
Manual - Software
Demo Board Software ADC_1_r04
ZIP 2.33 MB
2 items
