Overview

IDT's dual-channel ADC demoboard is suitable for dynamic performance evaluations from low to high IF configuration with LVDS/DDR output variants. A data-acquisition board can be used during design and prototype to analyze ADC performance.

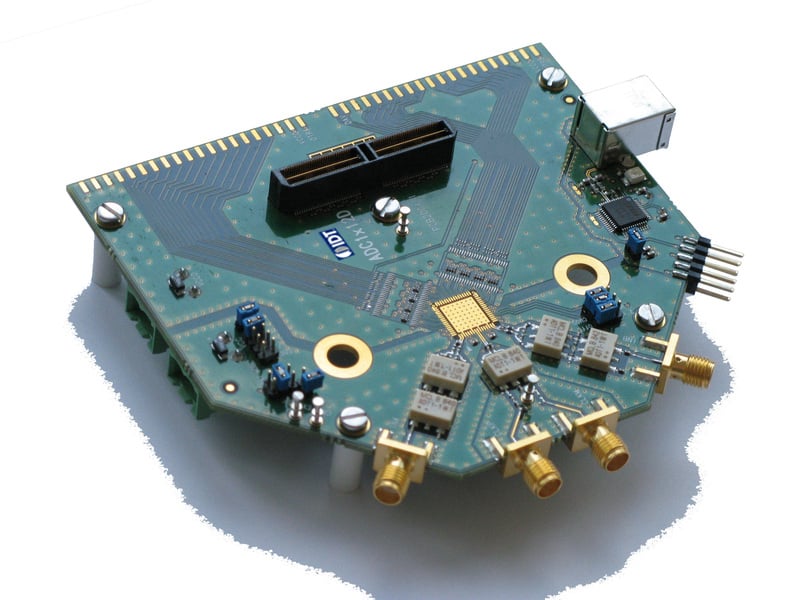

ADC1212D065F2 - Evaluation Board
ADC1212D065F2 - Evaluation Board
  • SMA connector for clock and analog inputs signal
  • LVDS/DDR output
