High-Performance 16-bit Quad DAC (Low Common Mode) Evaluation Board
The DAC1653Q-DB evaluation board features the DAC1658Q high-speed quad channel 16-bit DAC with high common mode voltage. The DAC1653Q-DB evaluation board is suitable...
Overview
Description

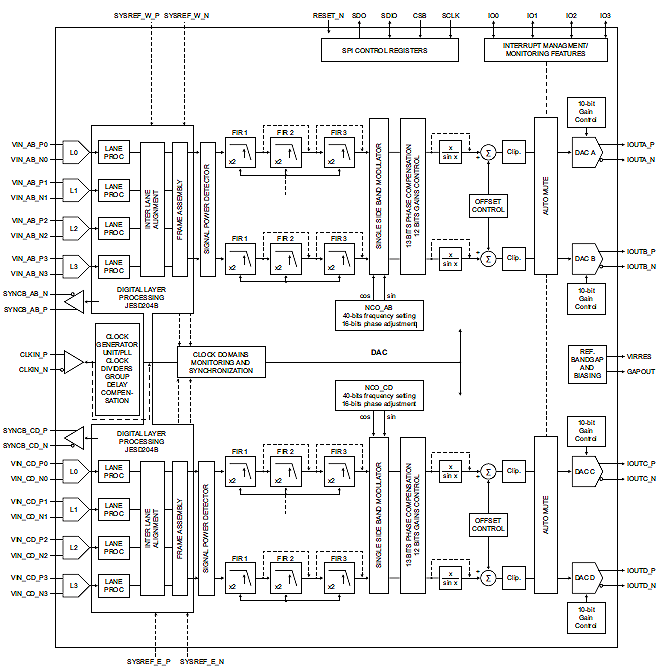

The DAC1653Q is a high-speed, high-performance 16-bit quad-channel digital-to-analog converter (DAC). The device provides sample rates up to 2.0Gsps with selectable 2x, 4x, and 8x interpolation filters optimized for multi-carrier and broadband wireless transmitters. The DAC1653Q integrates a JEDEC JESD204B-compliant high-speed serial input data interface running up to 10Gbps allowing dual channel input sampling at up to 1Gsps over four differential lanes. It offers numerous advantages over traditional parallel digital interfaces. The DAC1653Q integrates a very low noise bypassable phase-locked loop (PLL), two embedded NCOs with 40-bit programmable frequency, and two embedded complex (IQ) digital modulators. It is configured with low output common mode from 0.25V to 0.5V.
Features
- Quad 16-bit DAC, up to 2.0Gsps output update rate
- Up to 1Gsps baseband input data rate with x2, x4, and x8 interpolation
- Configurable JESD204B serial input lanes at up to 10Gbps
- JEDEC JESD204B device subclass 0 and 1 compliant, Xilinx LogiCORE IP
- Multiple-device synchronization (MDS) capable
- Input clock divider (2, 4, 6, 8) with group delay compensation
- RF enable/disable pin and RF automatic mute for PA protection
- Integrated low-noise bypassable PLL
- Two embedded NCOs with 40-bit programmable frequency
- Two embedded embedded complex (IQ) digital modulators
- Power consumption 450mW per channel at 1.5Gsps
- Output common mode voltage 0.5V typical
- Typ. performance: SFDR = 85dBc, IMD3 = 85dBc, NSD = -164dBm/Hz
- Xilinx LogiCORE IP JESD204
- See: Altera JESD204B Reference Designs
Comparison
Applications
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 9.82 MB | |
| Manual - Hardware | PDF 3.06 MB | |
| Manual - Software | ZIP 6.97 MB | |
| Manual - Hardware | PDF 217 KB | |
4 items
|
||
Design & Development
Boards & Kits
Digital Pattern Generation board for High-speed JESD204B DACs
HSDC-EXTMOD03B-DB is an FPGA-based digital pattern generation board for IDT’s JESD204B serial interface DACs.
High-Performance 16-bit Quad DAC (High Common Mode) Evaluation Board
The DAC1658Q-DB evaluation board features the DAC1658Q high-speed quad channel 16-bit DAC with a high common mode voltage. The DAC1658Q-DB evaluation board is suitable...
