Overview
Description

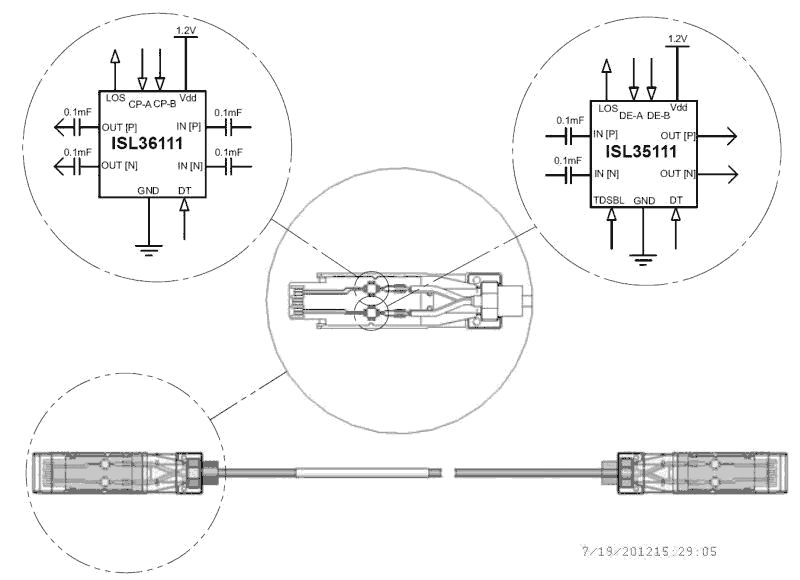

The ISL35111 is a de-emphasis driver with extended functionality for advanced protocols operating with line rates up to 11.1Gbps such as 10G Ethernet. The ISL35111 is a high-speed driver/limiting amplifier with built-in de-emphasis to drive twin-axial copper cables and compensate for the frequency-dependent attenuation of PCB traces such as the SFI channel in the 10G SFP+ specification (SFF-8431). Used in conjunction with Renesas' ISL36111 receive-side equalizer, ISL35111 enables active copper cable assemblies that support 10G serial data transmission over >15m of twin-axial copper cables. Operating on a single 1.2V power supply, the ISL35111 enables channel throughputs of 10Gbps to 11.1Gbps while supporting lower data rates including 8.5, 6.25, 5, 4.25, 3.125, and 2.5Gb/s. The QL111VTx uses current mode logic (CML) input/output and is packaged in a 3mm x 3mm 16 lead QFN.
Features
- Supports data rates up to 11.1Gbps
- Low power (85mW typical)
- Low latency (<500ps)
- Adjustable output de-emphasis
- Single-channel driver in a 3mm x 3mm QFN package for straight route-through architecture and simplified routing
- Supports 64b/66b encoded data long run lengths
- Line silence preservation
- 1.2V supply voltage
- TX_Disable and TX_LOS Benefits
- Thinner gauge cable
- Extends cable reach greater than 3x
- Improved BER
Comparison
Applications
- Active copper cable modules (SFP+, QSFP, CXP, etc)
- Optical transceiver modules (SFP+, QSFP, CXP, etc)
- 10G Ethernet
- 40G/100G Ethernet
- Fibre Channel
- High-speed active cable assemblies
- High-speed printed circuit board (PCB) traces
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 856 KB | |
| Brochure | PDF 5.41 MB 日本語 | |
| End Of Life Notice | PDF 603 KB | |
| Product Advisory | PDF 363 KB | |
| Product Advisory | PDF 33 KB | |
5 items
|
||
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
