Overview

The ISL6440EVAL1Z evaluation board highlights the operation of the ISL6440 300kHz dual, 180° out-of-phase, step-down pulse width modulation (PWM) controller in an embedded DC/DC converter application. The ISL6440 is a high performance triple-output controller that offers control and protection features for two synchronous buck PWMs.

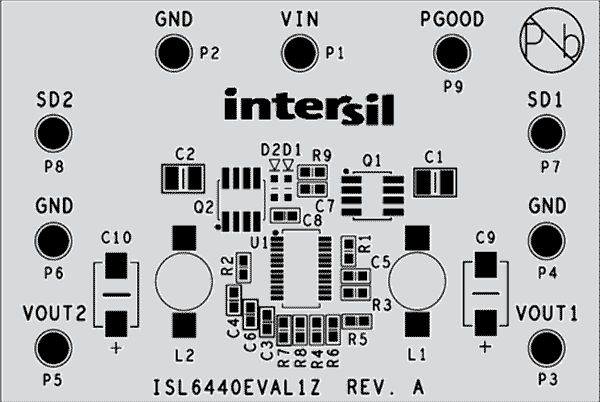

ISL6440EVAL1Z Buck PWM Controller Eval Board
ISL6440EVAL1Z Buck PWM Controller Eval Board
  • Wide input supply voltage range: 5.6V to 24V, 4.5V to 5.6V
  • Two independently programmable output voltages
  • Switching frequency 300kHz
  • Out-of-phase PWM controller operation: Reduces required input capacitance and power supply induced loads
  • No external current sense resistor: Uses lower MOSFET's rDS(ON)
  • Programmable soft-start
  • Extensive circuit protection functions: PGOOD, UVLO, overcurrent, over-temperature, independent shutdown for both PWMs
  • Excellent dynamic response: Voltage feed-forward with current mode Control

Applications

  • Power supplies with two outputs
  • xDSL modems/routers
  • DSP, ASIC and FPGA power supplies
  • Set-top boxes
  • Dual output supplies for DSP, memory, logic, µP core and I/O
  • Telecom systems

Documentation

= Featured Documentation
Type Title Date
Manual - Development Tools
ISL6440EVAL1Z User Guide
PDF 509 KB
Datasheet
ISL6440 Datasheet
PDF 683 KB 简体中文
2 items

Design & Development

Software Downloads
Type Title Date
PCB Design Files
ISL6440EVAL1Z Design Files
ZIP 257 KB
1 item

Product Options

    Processing table
    Buy / Sample
    Part Number
    ISL6440EVAL1Z
    circleLast Time Buy
    Samples Available
    		 Get Samples,
