Overview

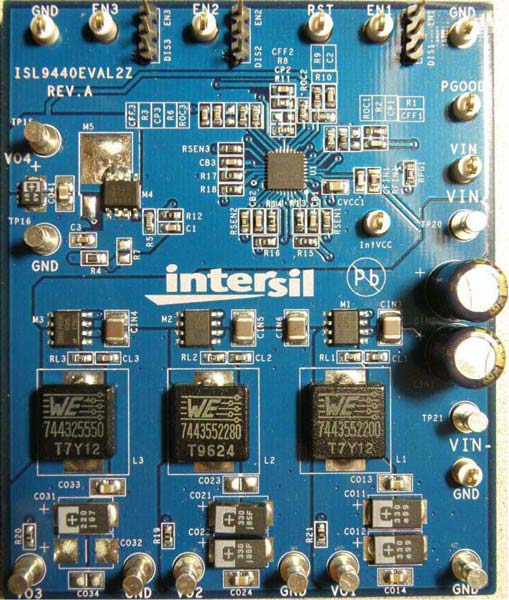

The ISL9440EVAL2Z evaluation board features the ISL9440 triple, 180° out-of-phase, step-down PWM and single linear controller. The ISL9440 is a quad-output controller that integrates three PWM synchronous buck controllers and one low-dropout linear regulator controller. The ISL9440 offers internal soft-start, independent enable functions and integrates UV/OV/OC/OT protections. Its current mode control architecture and internal compensation network keep peripheral component count minimal. A switching frequency of 300kHz minimizes losses while the strong gate drivers deliver up to 12A to each PWM channel.

ISL9440EVAL2Z Buck PWM and Single Linear Controller Eval Board
ISL9440EVAL2Z Buck PWM and Single Linear Controller Eval Board
  • DC/DC, step-down with LDO
  • Current - output: 6A, 6A, 4A, 800mA
  • Switching frequency: 300kHz
  • Soft-start timing: 1.7ms
  • Outputs/Type: 4, non-isolated
  • Voltage - input: 6V to 16V

Applications

  • Satellite and cable set-top boxes
  • Cable modems
  • VoX gateway devices
  • NAS/SAN devices
