Trace Hydrogen Sensor Evaluation Kit
The SMOD electronic module creates an easy way to evaluate the SGAS sensor. An MCU-based electronic module encompasses all measurement and control aspects of SGAS...
Overview
Description

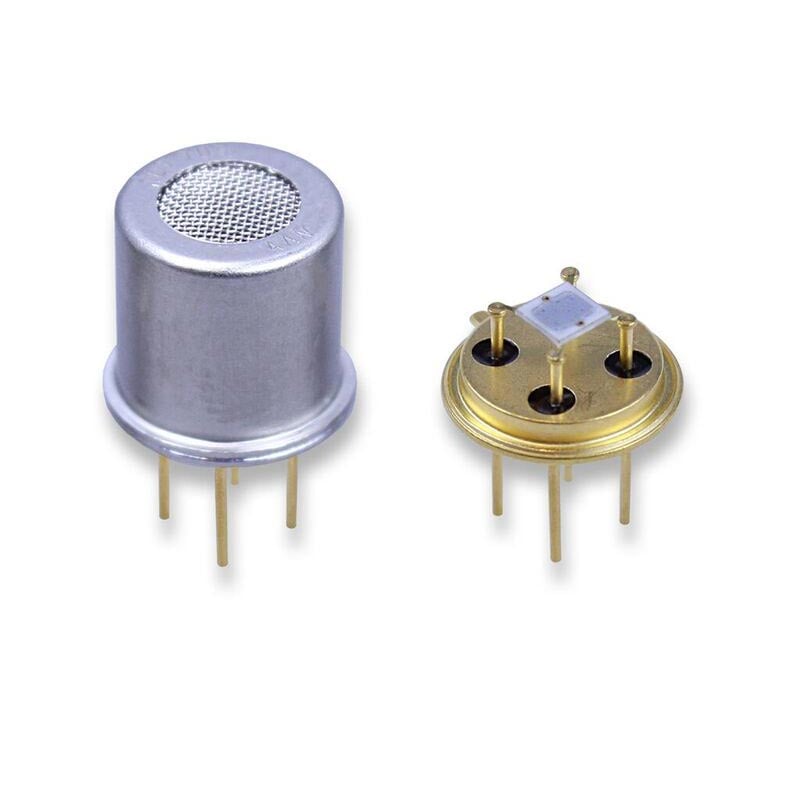

The SGAS701 is a solid-state chemiresistor sensor designed to detect hydrogen in air. The sensor uses an integrated heater with highly sensitive MOx material tailored for detection of hydrogen.
Features
- High sensitivity to low hydrogen concentrations (10 to 1000 ppm)
- Fast response time (15 seconds at 100 ppm)
- Environmental temperature range of -20°C to 50°C
- Environmental humidity range of 0% to 90% RH, non‑condensing
- Low dependence on flow rate
