Overview

The ZSPM8010-KIT single-phase open-loop evaluation board is a design platform providing the minimum circuitry needed to characterize critical performance of the ZSPM9010 DrMOS driver plus MOSFET multi-chip module. The board has been designed as an open-loop control with only common passive components in a synchronous buck converter without a PWM controller. The board can also be used to evaluate the features of the ZSPM9010 in a closed loop configuration when combined with the ZSPM1000 digital single-phase PWM controller.

The evaluation board is a high density, high-efficiency design, with a 1 MHz operating frequency and peak efficiency of over 92% with a 1.0V Vout condition. This board also demonstrates the ease of layout for printed circuit board artwork. Since the ZSPM9010 pin map is industry standard, it is easy to compare its performance to other DrMOS devices without changing other components.

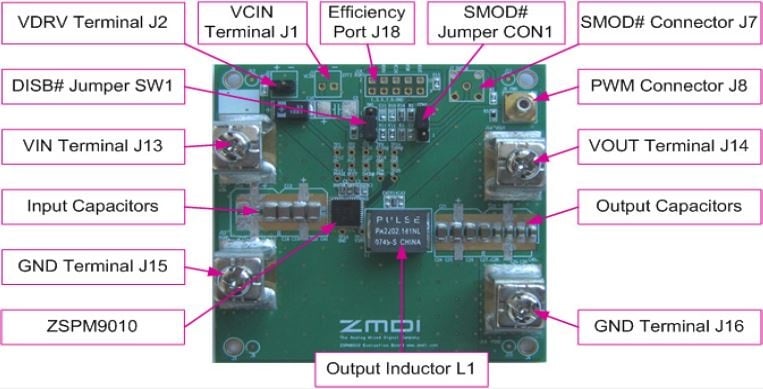

ZSPM8010KIT - Evaluation Kit (Top View)
ZSPM8010KIT - Evaluation Kit (Top View)
  • ZSPM8010-KIT Open-Loop Evaluation Board with one ZSPM9010 sample mounted.

Documentation

= Featured Documentation
Type Title Date
Manual - Development Tools
ZSPM8010-KIT User Guide
PDF 943 KB
Application Note
ZSPM1000 Application Note - Programming and Calibration
Log in to Download PDF 262 KB
Manual - Development Tools
ZSPM1000-ZSPM2000 Pink Power Designer User Manual
Log in to Download PDF 1.33 MB
Schematic
Schematic for ZSPM8xxx Evaluation Board for ZSPM1000 Rev. D
Log in to Download PDF 100 KB
4 items

Design & Development

Software Downloads
Type Title Date
Software & Tools - Other
ZSPM1000 Pink Power™ Designer GUI - Part 1 Rev. 1.1.0 (zip file)
Log in to Download ZIP 167.36 MB
Software & Tools - Other
ZSPM1000 Pink Power™ Designer GUI - Part 2 Rev. 1.1.0 (zip file)
Log in to Download ZIP 17.03 MB
2 items

Product Options

    Processing table
    Buy / Sample
    Part Number
    ZSPM8010KITV1P1
    circleNRND
