Communication Interface for ZSPM2000 and Select ZSPM8xxx Evaluation Kits
The PMBus™ Communication Interface (CI) provides the interface between the Evaluation Board and the user's computer for the ZSPM2000 Evaluation Kit and select ZSPM8xxx...
Overview
Description

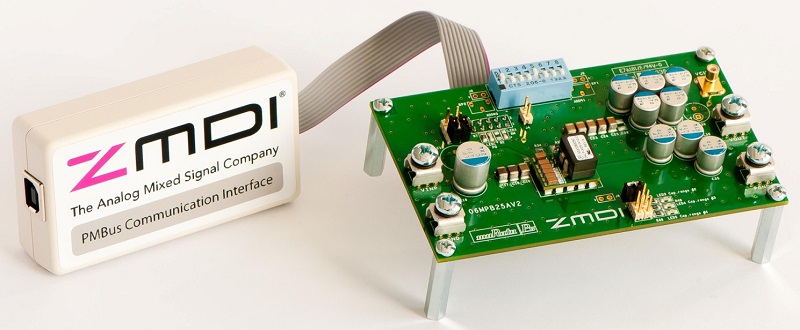

The ZSPM8825-KIT supports evaluation of DC/DC point-of-load (POL) applications. The kit incorporates the ZSPM1025D digital PWM controller IC and the Murata OKLP-X/25-W12-C Power Block to form a "smart" buck converter (a.k.a. step-down DC-to-DC converter). The ZSPM8825-KIT Evaluation Kit hardware functions with the Pink Power Designer™ graphical user interface (GUI), which is used for monitoring the internal measurements and fault conditions of the ZSPM1025D. The GUI is available for download.
The PMBus™ Communication Interface (CI) provides the interface between the ZSPM8825-KIT Evaluation Kit and the user's PC.
Features
- ZSPM8825 Evaluation Board with one ZSPM1025D sample mounted and 1 Murata OKLP-X/25-W12-C Power Block
- PMBus™ Communication Interface
- USB Cable
Applications
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 1.43 MB | |
| Manual - Development Tools | PDF 828 KB | |
2 items
|
||
