Overview

The ISL59837 is a revolutionary device that allows true singlesupply operation of video amplifiers. Designed for systems requiring output swing below ground but lacking a negative power supply, the ISL59837 generates the required negative rail internally from a +3. 3V power supply. This allows for DC-accurate coupling of video onto a 75Ω double-terminated line. The buffers have an integrated 6dB, eliminating the need for external gain-setting resistors. An external reference voltage can be applied to the REF pin to shift the analog video level down by the desired amount. The charge pump and amplifiers can be placed in a power down mode, consuming less than 1mA of current.

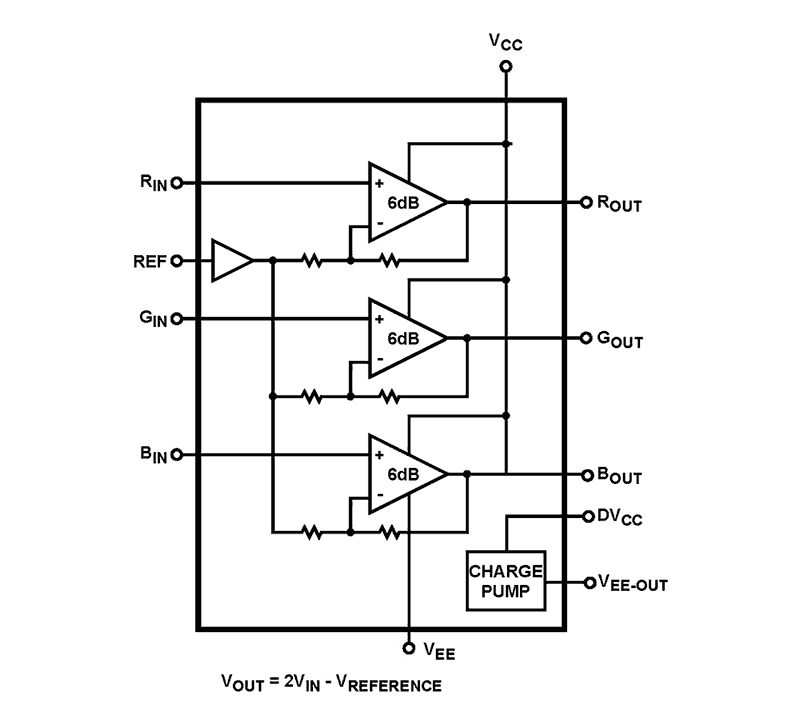

ISL59837 Functional Diagram
ISL59837 Functional Diagram
  • Triple single-supply buffer
  • Generates negative rail from from single +3.3V supply
  • No output DC blocking capacitor needed
  • 200MHz -3dB bandwidth
  • 50MHz 0.1dB bandwidth
  • Fixed gain of 2 output buffer
  • Charge pump power down function (0.1mA typical)
  • Outputs are high impedance in power-down mode
  • Amplifier enable/disable function control
  • Pb-free plus anneal available (RoHS compliant)

Applications

  • Driving video

Documentation

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    ISL59837IAZ
    circleActive
    memory
    spa
    view_in_ar
    Samples Available
    Buy Now
    		QSOP Tube 2 4.837 Get Samples,
    ISL59837IAZ-T7
    circleActive
    memory
    spa
    view_in_ar
    Samples Available
    		 QSOP Reel 2 5.277 Get Samples,
