Overview

The ISL5761EVAL1 evaluation board provides a quick and easy method for evaluating the ISL5761 10-bit, 130/210MSPS high-speed D/A (digital-to-analog) converters. The ISL5761EVAL1 is populated with an SOIC package and the board is configured so that the converter outputs differential current into a transformer circuit to form an output voltage. The amount of current out of the DAC is determined by an external resistor and either an internal or external reference voltage. The CMOS digital inputs have optional external termination resistors. The evaluation board includes a ribbon cable digital interface that is compatible with digital upconverter (DUC) evaluation boards like the ISL5217.

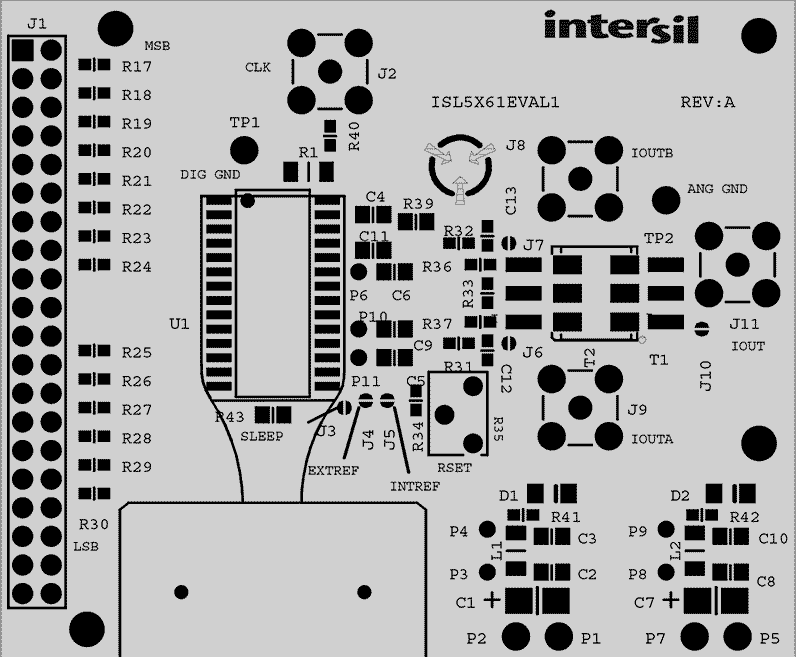

ISL5x61EVAL1 High Speed D/A Converter Eval Board
ISL5x61EVAL1 High Speed D/A Converter Eval Board
  • 210MSPS 10-bit CMOS DAC
  • Transformer-coupled or single-ended SMA outputs
  • Interface compatible to the ISL5217 digital upconverter allows complete baseband-to-intermediate frequency (IF) demonstration

Applications

  • Cellular infrastructure
  • BWA infrastructure
  • Medical/Test instrumentation
  • Wireless communication systems
  • High-resolution imaging systems
  • Arbitrary waveform generators

Documentation

= Featured Documentation
Type Title Date
Manual - Development Tools
ISL5x61EVAL1 and ISL5x61EVAL2 User Guide
PDF 272 KB
Datasheet
ISL5761 Datasheet
PDF 1002 KB
2 items

Design & Development

Software Downloads
Type Title Date
PCB Design Files
ISL5X61EVAL1 Eval Board Layout
PDF 319 KB
PCB Design Files
ISL5X61EVAL1 Eval Board Schematic
PDF 73 KB
2 items
