Overview

Support is limited to customers who have already adopted these products.

The Intersil X9116 is a digitally controlled nonvolatile potentiometer designed to be used in trimmer applications. The pot consists of 15 equal resistor segments that connect to the wiper pin through programmable CMOS switches. The tap position is programmed through a 3-wire up/down serial port. The last position of the wiper is stored in a nonvolatile memory location which is recalled at the time of power up of the device. The wiper moves through sequential tap positions with inputs on the serial port. A falling edge on INC (bar) causes the tap position to increment one position up or down based on whether the U/D (bar) pin is held high or low. The X9116 can be used in many applications requiring a variable resistance. In many cases it can replace a mechanical trimmer and offers many advantages such as temperature and time stability as well as the reliability of a solid state solution.

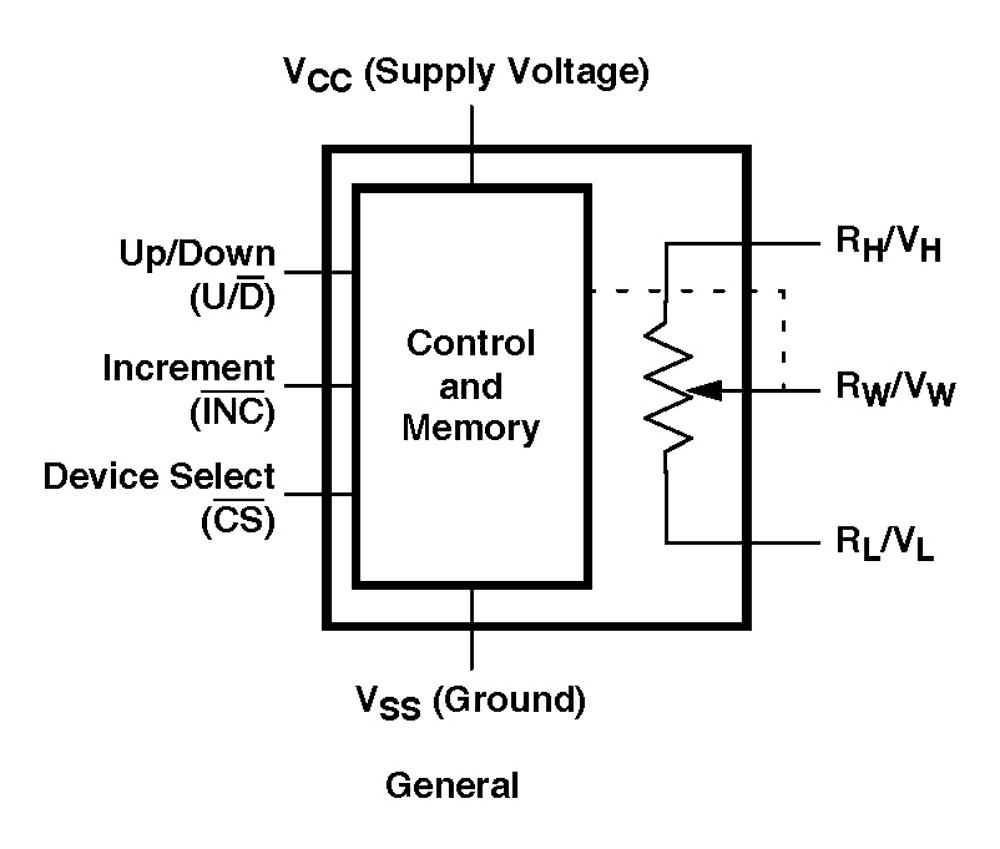

X9116 Functional Diagram
X9116 Functional Diagram
  • Solid-state nonvolatile
  • 16 wiper taps
  • 3-wire up/down serial interface
  • VCC = 2.7V and 5V
  • Active current < 50µA max.
  • Standby current < 5µA max.
  • RTOTAL = 10kΩ
  • Packages: 8 Ld MSOP, 8 Ld SOIC
  • Pb-free plus anneal available (RoHS compliant)

Documentation

Design & Development

Software Downloads
Type Title Date
Library
DCP Evaluation Board Software v6.03
EXE 2.56 MB
1 item

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Carrier Type
    MOQ
    Buy / Sample
    Part Number
    X9116WM8IZ
    circleObsolete
    memory
    view_in_ar
    		MSOP Tube 960
    X9116WM8IZ-2.7
    circleObsolete
    memory
    view_in_ar
    		MSOP Tube 960
    X9116WM8IZ-2.7T1
    circleObsolete
    memory
    view_in_ar
    		MSOP Reel 2500
    X9116WM8IZT1
    circleObsolete
    memory
    view_in_ar
    		MSOP Reel 2500
    X9116WM8Z
    circleObsolete
    memory
    view_in_ar
    		MSOP Tube 1280
    X9116WM8Z-2.7
    circleObsolete
    memory
    view_in_ar
    		MSOP Tube 1280
    X9116WM8Z-2.7T1
    circleObsolete
    memory
    view_in_ar
    		MSOP Reel 2500
    X9116WM8ZT1
    circleObsolete
    memory
    view_in_ar
    		MSOP Reel 2500
    X9116WS8IZ
    circleObsolete
    memory
    view_in_ar
    		SOICN Tube 2000
    X9116WS8IZ-2.7
    circleObsolete
    memory
    view_in_ar
    		SOICN Tube 1200
    X9116WS8IZ-2.7T1
    circleObsolete
    memory
    view_in_ar
    		SOICN Reel 2500
    X9116WS8IZT1
    circleObsolete
    memory
    view_in_ar
    		SOICN Reel 2500
    X9116WS8Z
    circleObsolete
    memory
    view_in_ar
    		SOICN Tube 1600
    X9116WS8Z-2.7
    circleObsolete
    memory
    view_in_ar
    		SOICN Tube 2000
    X9116WS8Z-2.7T1
    circleObsolete
    memory
    view_in_ar
    		SOICN Reel 2500
    X9116WS8ZT1
    circleObsolete
    memory
    view_in_ar
    		SOICN Reel 2500
