Overview

The X9259EVAL board is used to evaluate the X9259 single supply/low power/256-tap/2-wire bus, quad digitally-controlled (XDCP™) potentiometer.

The X9259 integrates four digitally controlled potentiometers (XDCP) on a monolithic CMOS integrated circuit. The digitally controlled potentiometers are implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the 2-wire bus interface. Each potentiometer has a volatile wiper counter register (WCR) and four nonvolatile data registers that can be directly written to and read by the user. The content of the WCR controls the position of the wiper. At power-up, the device recalls the content of the default data registers of each DCP (DR00, DR10, DR20, and DR30) to the corresponding WCR.

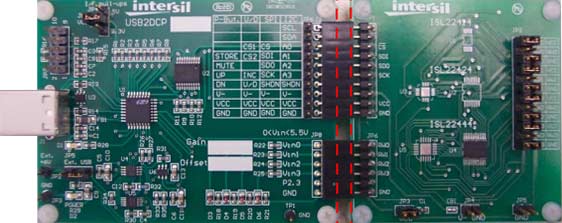

X9259EVAL Digital Potentiometer Eval Board
X9259EVAL Digital Potentiometer Eval Board
  • Four separate potentiometers in one package
  • 256 resistor taps–0.4% resolution
  • 2-wire serial interface for write, read and transfer operations of the potentiometer
  • Wiper resistance: 100Ω typical at VCC = 5V
  • 4 nonvolatile data registers for each potentiometer
  • Nonvolatile storage of multiple wiper positions
  • Standby current <5µA max
  • VCC: 2.7V to 5.5V operation
  • 50kΩ version of total resistance
  • Endurance: 100,000 data changes per bit per register
  • 100 year data retention
  • Single supply version of X9258
  • 24 Ld SOIC, 24 Ld TSSOP
  • Low power CMOS

Applications

  • Control
  • Parameter adjustments
  • Signal processing

Documentation

= Featured Documentation
Type Title Date
Datasheet
X9259 Datasheet
PDF 860 KB
Manual - Development Tools
Digital Potentiometer (DCP) Evaluation USB Kit Manual
PDF 1.40 MB
2 items

Design & Development

Software Downloads
Type Title Date
PCB Design Files
XDCP Evaluation Board Kit Documentation and Software
ZIP 21.07 MB
Library
DCP Evaluation Board Software v6.03
EXE 2.56 MB
2 items
