Overview
Description

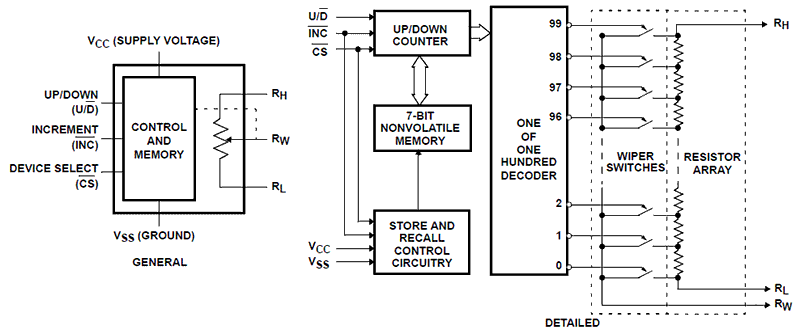

The X9317 is a digitally controlled potentiometer (XDCP™). The device consists of a resistor array, wiper switches, a control section, and nonvolatile memory. The wiper position is controlled by a 3-wire interface. The potentiometer is implemented by a resistor array composed of 99 resistive elements and a wiper switching network. Between each element and at either end are tap points accessible to the wiper terminal. The position of the wiper element is controlled by the CS, U/D, and INC inputs. The position of the wiper can be stored in nonvolatile memory and then be recalled upon a subsequent power-up operation. The device can be used as a three-terminal potentiometer for voltage control or as a two-terminal variable resistor for current control in a wide variety of applications.
Features
- Solid-State Potentiometer
- 3-Wire Serial Up/Down Interface
- 100 Wiper Tap Points
- Wiper Position Stored in Nonvolatile Memory and Recalled on Power-up
- 99 Resistive Elements
- Temperature Compensated
- End-to-end Resistance Range ±20%
- Low Power CMOS
- VCC = 2.7V to 5.5V, and 5V ±10%
- Standby Current <5µA
- High Reliability
- Endurance, 100,000 Data Changes per Bit
- Register Data Retention, 100 years
- RTOTAL Values = 10kΩ, 50kΩ, 100kΩ
- Packages
- 8 Ld SOIC, TSSOP, and MSOP
- Pb-Free (RoHS Compliant)
Comparison
Applications
Applications
- LCD Bias Control
- DC Bias Adjustment
- Gain and Offset Trim
- Laser Diode Bias Control
- Voltage Regulator Output Control
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Pkg. Type |
Carrier Type |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|
| Part Number | |||||
X9317US8IZ Active Samples Available
Buy Now
|
SOICN | Tube | 1 | 4.937 | Get Samples, |
X9317US8IZ-2.7 Active Samples Available
Buy Now
|
SOICN | Tube | 1 | 7.892 | Get Samples, |
| SOICN | Reel | 1 | 5.487 | ||
| SOICN | Reel | 1 | |||
X9317US8Z Active Samples Available
Buy Now
|
SOICN | Tube | 1 | 5.825 | Get Samples, |
X9317US8Z-2.7 Active Samples Available
Buy Now
|
SOICN | Tube | 1 | 6.411 | Get Samples, |
| SOICN | Reel | 1 | |||
| SOICN | Reel | 1 | |||
X9317UV8IZ Active Samples Available
Buy Now
|
TSSOP | Tube | 1 | 8.953 | Get Samples, |
X9317UV8IZ-2.7 Active Samples Available
Buy Now
|
TSSOP | Tube | 1 | 9.483 | Get Samples, |
| TSSOP | Reel | 1 | |||
| TSSOP | Reel | 1 | |||
X9317UV8Z Active Samples Available
Buy Now
|
TSSOP | Tube | 1 | 7.173 | Get Samples, |
X9317UV8Z-2.7 Active Samples Available
Buy Now
|
TSSOP | Tube | 1 | 6.482 | Get Samples, |
| TSSOP | Reel | 1 | |||
| TSSOP | Reel | 1 | |||
X9317WM8IZ Active Samples Available
Buy Now
|
MSOP | Tube | 2 | 6.096 | Get Samples, |
X9317WM8IZ-2.7 Active Samples Available
Buy Now
|
MSOP | Tube | 2 | 10.23 | Get Samples, |
X9317WM8IZ-2.7T1 Active Samples Available |
MSOP | Reel | 2 | Get Samples, | |
| MSOP | Reel | 2 | |||
X9317WM8Z Active Samples Available
Buy Now
|
MSOP | Tube | 2 | 8.664 | Get Samples, |
X9317WM8Z-2.7 Active Samples Available
Buy Now
|
MSOP | Tube | 2 | 6.333 | Get Samples, |
| MSOP | Reel | 2 | |||
| MSOP | Reel | 2 | |||
X9317WS8IZ Active Samples Available
Buy Now
|
SOICN | Tube | 1 | 7.101 | Get Samples, |
X9317WS8IZ-2.7 Active Samples Available
Buy Now
|
SOICN | Tube | 1 | 5.555 | Get Samples, |
| SOICN | Reel | 1 | |||
| SOICN | Reel | 1 | |||
X9317WS8Z Active Samples Available
Buy Now
|
SOICN | Tube | 1 | 5.86 | Get Samples, |
X9317WS8Z-2.7 Active Samples Available
Buy Now
|
SOICN | Tube | 1 | Get Samples, | |
| SOICN | Reel | 1 | |||
| SOICN | Reel | 1 | |||
X9317WV8IZ Active Samples Available
Buy Now
|
TSSOP | Tube | 1 | 8.953 | Get Samples, |
X9317WV8IZ-2.7 Active Samples Available
Buy Now
|
TSSOP | Tube | 1 | 8.555 | Get Samples, |
| TSSOP | Reel | 1 | |||
| TSSOP | Reel | 1 | |||
X9317WV8Z Active Samples Available
Buy Now
|
TSSOP | Tube | 1 | 7.173 | Get Samples, |
X9317WV8Z-2.7 Active Samples Available
Buy Now
|
TSSOP | Tube | 1 | 7.82 | Get Samples, |
| TSSOP | Reel | 1 | |||
| TSSOP | Reel | 1 |
