Overview
Description
The combination of R-Car (H3/M3/M3N) SiP and the Clock Generators provides high efficiency and supports a variety of display outputs and high-quality outputs for scalable cockpit and infotainment solutions.
Features

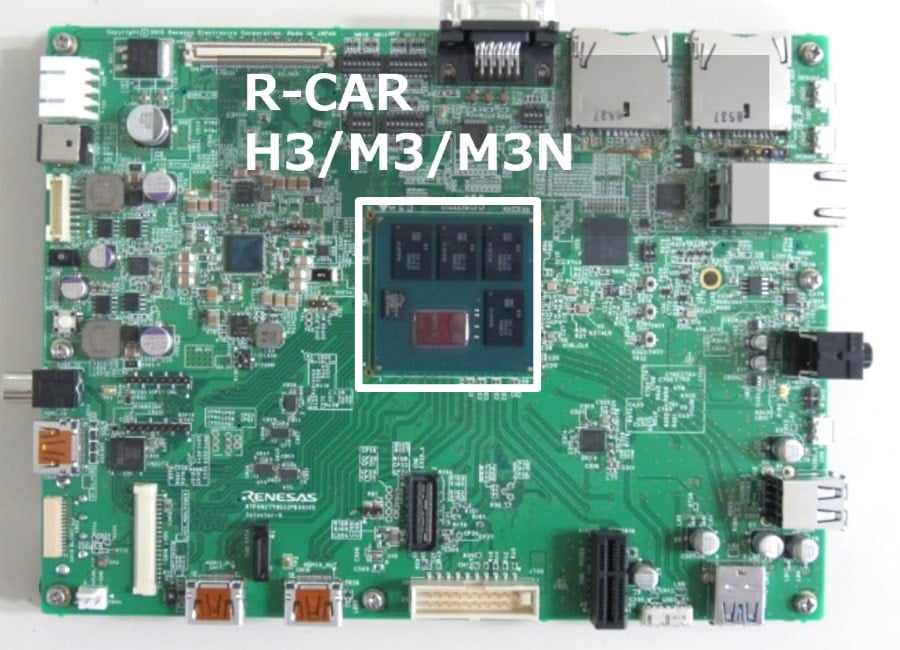

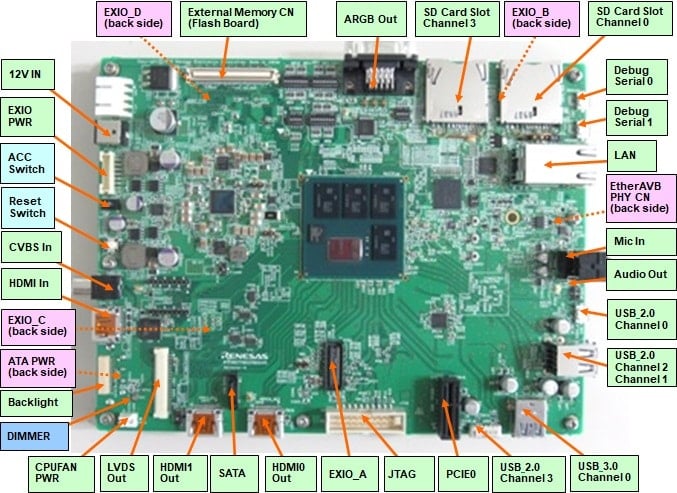

- The development board includes peripheral circuits required for in-vehicle information solutions and a board-to-board connector for extension. Customers can use the board to kickstart hardware and software development and shorten time-to-market. Some boards feature a socket that allows users to evaluate R-Car SiP using the same board.
- R-Car SoC SiP: Including the H3/M3/M3N R-Car SoC, LPDDR4-3200 memory, and HyperFlash memory to ease design and shorten time-to-market.
- Programmable clock generator (5P49V6901A: Auto Grade = 5P49V60): Flexible clock generator capable of generating any clock frequency from 1MHz to 350MHz, allows a single device to replace several crystal oscillators with any frequency.
- Clock generator (9FGV0841): Flexible clock generator capable of generating an 8-output PCIe Gen1-4 clock, allows a single device to replace several crystal oscillators with any frequency.
- Scalable ROM configurations, enabling a single device to be used across multiple platforms.
Applications
Applications
- Cockpit
- Infotainment
- Dashboard
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware | PDF 1.63 MB | |
| Engineering | ZIP 299 KB | |
| Manual - Hardware | PDF 1.47 MB | |
| Manual - Development Tools | PDF 1000 KB | |
4 items
|
||
Design & Development
Processing table
RTP8J779M5ASKB0SL0SA103 Active |
M3Ne version | |
RTP8J779M3ASKB0SL0SA103 Active |
M3e version | |
RTP8J77961ASKB0SL0SS15A Active |
M3_WS3.0_ver | |
RTP8J77951ASKB0SL0SS103 Active |
H3_WS3.0_ver | |
RTP8J779M1ASKB0SL0SA103 Active |
H3e version |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
Proposal for EBF Using the R-Car Salvator-xs Board (Lineo Solutions, Inc.)
Lineo Solutions, Inc.
Provide access to a board from global locations.
Video List
