Evaluation Kit for 9FGV1002 Programmable PhiClock™ Generator
This is the evaluation board for the 9FGV1002 programmable PhiClockTM generator. It provides a convenient way of configuring and programming the blank parts for the...
Overview

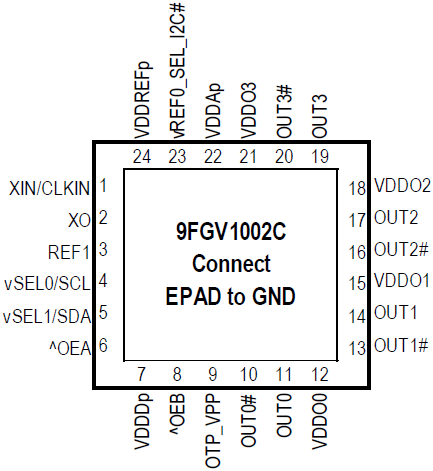

Description
The 9FGV1002 is a member of Renesas' PhiClock™ programmable clock generator family. The 9FGV1002 provides four spread-spectrum copies of a single output frequency and two copies of the crystal reference input. Two select pins allow for hardware selection of the desired configuration, or two I²C bits all easy software selection of the desired configuration. The user may configure any one of the four OTP configurations as the default when operating in I²C mode. Four unique I²C addresses are available, allowing easy I²C access to multiple components.
Features
- PCIe Gen1–6 compliant
- PCIe Gen6 Common Clock jitter < 50fs RMS
- 276fs RMS typical phase jitter at 156.25MHz (12kHz–20MHz)
- 4 programmable output pairs plus 2 LVCMOS REF outputs
- 1 integer, fractional or spread-spectrum output frequency per configuration
- 1MHz–325MHz output frequency (LVDS or LP-HCSL)
- 1MHz–200MHz output frequency (LVCMOS)
- 1.8V to 3.3V core VDD
- Individual 1.8V, 2.5V or 3.3V VDDO for each programmable output pair
- Supports HCSL, LVDS and LVCMOS I/O standards
- Supports AC-coupled LVPECL and CML logic – see AN-891
- 4 × 4 mm 24-VFQFPN and 24-LGA packages with 50MHz integrated crystal option
- Supported by Timing Commander™ software
Comparison
Applications
Design & Development
Software & Tools
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
This device is factory-configurable. Try the Custom Part Configuration Utility.
Processing table
Pkg. Type |
Supply Voltage (V) |
Output Impedance |
Xtal Freq (MHz) |
Carrier Type |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|---|
| Part Number | ||||||||
| VFQFPN | 3.3 | 100 | 8 - 50 | Tray | 1 | 3.583 | Get Samples, | |
| VFQFPN | 1.8 | 100 | 8 - 50 | Tray | 1 | 3.518 | Get Samples, | |
| VFQFPN | 3.3 | 85 | 8 - 50 | Tray | 1 | 3.583 | Get Samples, | |
| LGA | 3.3 | 100 | 8 - 50 | Tray | 3 | Get Samples, | ||
| LGA | 1.8 | 100 | 8 - 50 | Tray | 3 | 3.974 | Get Samples, | |
| LGA | 3.3 | 85 | 8 - 50 | Tray | 3 | 4.2 | Get Samples, | |
| VFQFPN | 3.3 | 100 | 8 - 50 | Reel | 1 | |||
| VFQFPN | 1.8 | 100 | 8 - 50 | Reel | 1 | |||
| VFQFPN | 3.3 | 85 | 8 - 50 | Reel | 1 | |||
| LGA | 3.3 | 100 | 8 - 50 | Reel | 3 | |||
| LGA | 1.8 | 100 | 50 | Reel | 3 | |||
| LGA | 3.3 | 85 | 8 - 50 | Reel | 3 | |||
| VFQFPN | 3.3 | 100 | 8 - 50 | Tray | 1 | Get Samples, | ||
| VFQFPN | 3.3 | 100 | 8 - 50 | Reel | 1 | |||
| VFQFPN | 1.8 | 100 | 8 - 50 | Tray | 1 | Get Samples, | ||
| VFQFPN | 1.8 | 100 | 8 - 50 | Reel | 1 | |||
| VFQFPN | 3.3 | 85 | 8 - 50 | Tray | 1 | Get Samples, | ||
| VFQFPN | 3.3 | 85 | 8 - 50 | Reel | 1 |
