Overview

The RC19024 is a 24-output PCIe Gen7 buffer that is backward compatible with earlier PCIe generations. The RC19024 provides ultra-low additive jitter and reduced in-to-out delay performance for better design margin and incorporates several features for easier and more robust design.

RC190xxA - Block Diagram

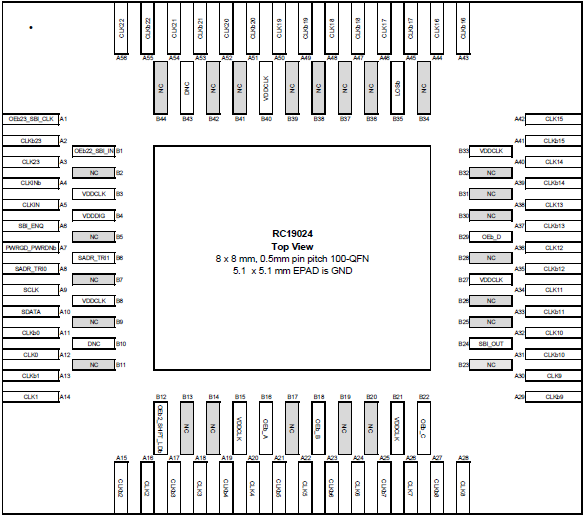

RC19024A - Pin Assignment
RC190xxA - Block Diagram
RC19024A - Pin Assignment
  • LP-HCSL outputs eliminate up to 96 terminated resistors
  • PCIe Gen 1–7 compliance
  • Drive both source-terminated and double-terminated loads
  • Selectable output slew rate via SMBus
  • Supports 85Ω output impedance
  • Open-drain LOS (Loss-Of-Signal) indication output
  • Power down tolerance (PDT)
  • Flexible startup sequencing (FSS)
  • Automatic clock parking (ACP)
  • Dedicated OE# pins to control group output
  • 4-wire Side-Band interface and device daisy-chaining
  • SMBus write protection features with 9 selectable addresses
  • 8mm × 8mm 100-GQFN package

Documentation

Design & Development

Software Downloads
Type Title Date
Software & Tools - Other
RC19 Symbol
Log in to Download ZIP 3.50 MB
1 item

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Output Impedance
    Carrier Type
    Temp. Range
    Lead Count (#)
    Pkg. Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    RC19024AGNQ#BB0
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		85 Tray -40 to 105°C 100 VFQFPN 3 4.145 Get Samples,
    RC19024AGNQ#KB0
    circleActive
    memory
    view_in_ar
    		85 Reel -40 to 105°C 100 VFQFPN 3
