Overview

The 853S01I is a high performance 2:1 Differential-to-LVPECL Multiplexer. The 853S01I can also perform differential translation because the differential inputs accept LVPECL and LVDS levels. The 853S01I is packaged in a small 3mm x 3mm 16 VFQFN package, making it ideal for use on space constrained boards.

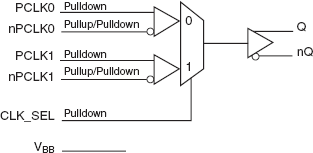

853S01I - Block Diagram

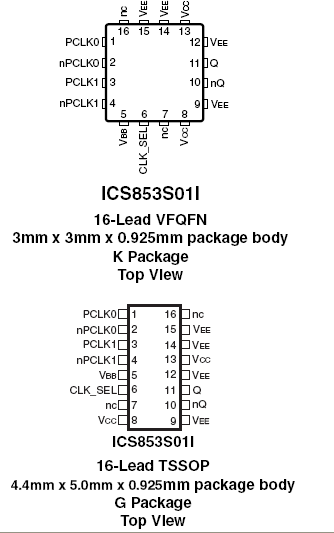

853S01I - Pinout
853S01I - Block Diagram
853S01I - Pinout
  • One LVPECL output pair
  • Two selectable differential LVPECL clock inputs
  • PCLKx, nPCLKx pairs can accept the following differential input levels: LVPECL, LVDS
  • Translates LVCMOS/LVTTL input signals to LVPECL levels by using a resistor bias network on nPCLKx, nPCLKx
  • Part-to-part skew: 150ps (maximum)
  • Propagation delay: 490ps (maximum)
  • Full 3.3V or 2.5V operating supply
  • -40°C to 85°C ambient operating temperature
  • Available in lead-free (RoHS 6) packages

Documentation

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    853S01AGILF
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		TSSOP 16 I Yes Tube 1 8.932 Get Samples,
    853S01AGILFT
    circleActive
    memory
    view_in_ar
    Buy Now
    		TSSOP 16 I Yes Reel 1 8.075
    853S01AKILF
    circleActive
    memory
    view_in_ar
    Samples Available
    		 VFQFPN 16 I Yes Tray 3 Get Samples,
    853S01AKILFT
    circleActive
    memory
    view_in_ar
    		VFQFPN 16 I Yes Reel 3
