Overview

The 853S057I is a 4:1 Differential-to-3.3V or 2.5V LVPECL/ECL Clock/Data Multiplexer which can operate up to 3GHz and is a member of the HiPerClockS ™ family of High Performance Clock Solutions from IDT. The 853S057I has 4 differential selectable clock input pairs. The CLK/nCLK input pairs can accept LVPECL, LVDS, CML or SSTL levels. The fully differential architecture and low propagation delay make it ideal for use in clock distribution circuits. The multiplexer select control inputs have ECL/LVPECL interface levels. The select pins have internal pulldown resistors.

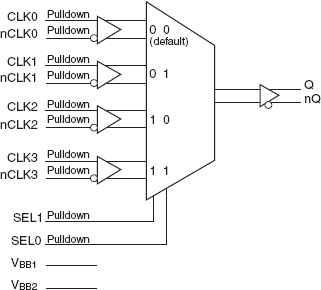

853S057I - Block Diagram

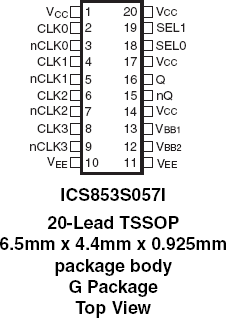

853S057I - Pinout
853S057I - Block Diagram
853S057I - Pinout
  • High speed 4:1 differential multiplexer
  • One differential 3.3V, 2.5V LVPECL/ECL output
  • Four differential CLKx/nCLKx input pairs
  • Differential CLKx/nCLKx pairs can accept the following interface levels: LVPECL, LVDS, CML, SSTL
  • Maximum input/output frequency: 3GHz
  • Additive phase jitter, RMS @ 622.08MHz: 0.073ps (typical)
  • Part-to-part skew: 250ps (maximum)
  • Propagation delay: 615ps (maximum)
  • LVPECL mode operating voltage supply range: VCC = 2.375V to 3.465V, VEE = 0V
  • ECL mode operating voltage supply range: VCC = 0V, VEE = -3.465V to -2.375V
  • -40°C to 85°C ambient operating temperature
  • Available in lead-free (RoHS 6) packages

Documentation

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    853S057AGILF
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		TSSOP 20 I Yes Tube 1 5.714 Get Samples,
    853S057AGILFT
    circleActive
    memory
    view_in_ar
    Buy Now
    		TSSOP 20 I Yes Reel 1 5.588
