Overview

The 854S054I is a 4:1 differential-to-LVDS clock multiplexer that can operate up to 2.5GHz. The 854S054I has four selectable differential clock inputs. The PCLK, nPCLK input pairs can accept LVPECL, LVDS, or CML levels. The fully differential architecture and low propagation delay make it ideal for use in clock distribution circuits. The select pins have internal pull-down resistors. The SEL1 pin is the most significant bit and the binary number applied to the select pins will select the same numbered data input (i.e., 00 selects PCLK0, nPCLK0).

854S054I - Block Diagram

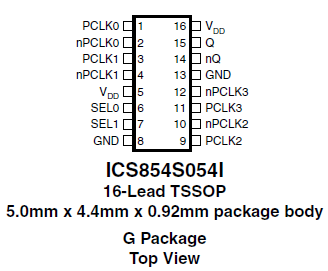

854S054I - Pinout
854S054I - Block Diagram
854S054I - Pinout
  • High-speed 4:1 differential multiplexer
  • One differential LVDS output pair
  • Four selectable differential PCLK, nPCLK input pairs
  • PCLKx, nPCLKx pairs can accept the following differential input levels: LVPECL, LVDS, CML
  • Maximum output frequency: 2.5GHz
  • Translates any single-ended input signal to LVDS levels with resistor bias on nPCLKx input
  • Additive phase jitter, RMS: 0.147ps (typical)
  • Part-to-Part skew: 300ps (maximum)
  • Propagation delay: 700ps (maximum)
  • Supply voltage range: 3.135V to 3.465V
  • -40 °C to 85 °C ambient operating temperature
  • Available in a lead-free (RoHS 6) package

Documentation

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    854S054AGILF
    circleActive
    memory
    view_in_ar
    Samples Available
    		 TSSOP 16 I Yes Tube 1 10.8 Get Samples,
    854S054AGILFT
    circleActive
    memory
    view_in_ar
    		TSSOP 16 I Yes Reel 1
