MicroClock 5L1503 / 5L1503L / 5L1503S Development Kits
The MicroClock 5L1503 / 5L1503L / 5L1503S Development Kit include a USB interface connecting board, 5L1503 / 5L1503L / 5L1503S evaluation board, tiny evaluation board...
Overview
Description
The 5L1503 is a series of small form factor programmable clock generators intended for low-power, consumer, battery-powered applications, wearables, and smart devices.

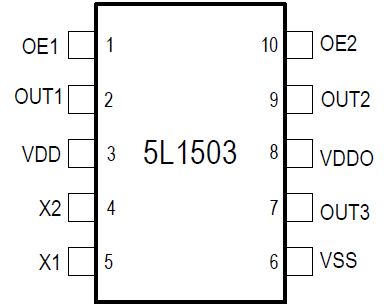

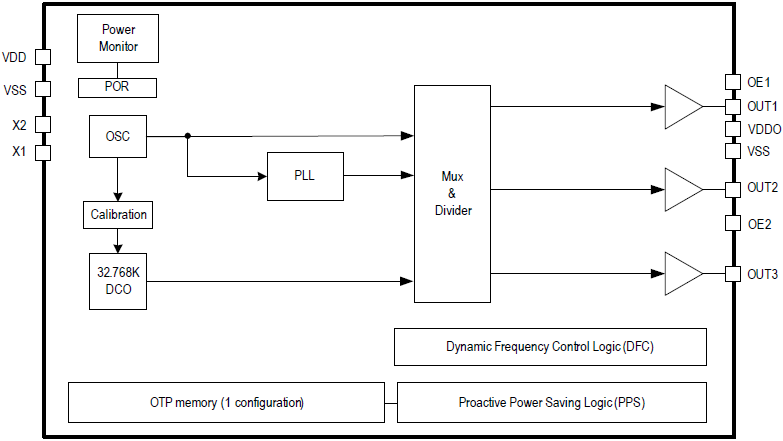

The device is a 1 PLL + DCO architecture design with an external fundamental crystal or clock input. It allows up to three unique frequency outputs. The 5L1503 has built-in unique features such as Proactive Power Saving (PPS) and an extremely low power DCO to support system date/time keeping clock at 32.768kHz. Dynamic Frequency Control (DFC) supports dynamically changing between four different PLL frequencies via external requests with controlled frequency changes, reducing frequency overshoot and undershoot (ORT). The 5L1503S device can also support a spread clock output for EMI reduction.
An internal one-time programmable (OTP) memory allows the user to store up to four independent configurations that can be loaded on power-up without programming. The 5L1503 supports three LVCMOS type outputs with VDDO 1.8V, as well as various amplitude clocks. A low-power 32.768kHz clock is supported with only less than 1μA current consumption for system RTC reference clock needs.
Features
- Proactive Power Saving (PPS) features save power during the end device power-down mode
- Dynamic Frequency Control (DFC) feature allows programming up to 2 different configurations that switch dynamically
- Programmable output clock amplitude(1.0V, 1.1V, 1.2V, and 1.8V) to support low output swing clock requirement
- Dedicated 32kHz output with 8 options clock amplitude (5L1503L)
- Spread spectrum compatible; tracks spreading input clock for low EMI (5L1503S)
- OTP programming
- Supported by Renesas' Timing Commander™ software tool
Comparison
Applications
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Timing Commander Timing Commander™ is an innovative Windows™-based software platform enabling system design engineers to configure, program, and monitor sophisticated timing devices with an intuitive and flexible graphical user interface (GUI).
|
Code Generator | Renesas |
1 item
|
||
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
This device is factory-configurable. Try the Custom Part Configuration Utility.
Processing table
| Standard | VFQFPN | 10 | I | Cut Tape | 1 | Get Samples, | ||
| Standard | VFQFPN | 10 | I | Reel | 1 | |||
| Ultra Low-power | VFQFPN | 10 | I | Cut Tape | 1 | 0.5625 | Get Samples, | |
| Ultra Low-power | VFQFPN | 10 | I | Reel | 1 | 0.6563 | ||
| Spread Clock | VFQFPN | 10 | I | Cut Tape | 1 | 0.6563 | Get Samples, | |
| Spread Clock | VFQFPN | 10 | I | Reel | 1 | 1.47 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
MicroClock™ Clock Generator Family Overview
A brief overview of the MicroClock™ family of tiny, flexible clock generators designed for wearable, hearable, and IoT applications.
