Overview

This is the evaluation kit for the Renesas RC38612 ClockMatrix Radio Access Network Equipment Synchronizer. This is the superset device and can also be used to evaluate the RC32012 device. The RC38612 provides six independent timing channels that can be configured as Digital PLLs (DPLLs) or as Digitally Controlled Oscillators (DCOs). The DPLL channels meet synchronous Ethernet and wireless radio clocking requirements and they can be used for jitter attenuation and frequency translation. The DCOs they can be programmed to synthesize the desired frequency and can be steered by external software with resolution of  1.11E-16. The DPLLs can lock to virtually any frequency from 0.5Hz to 1GHz and the DPLLs and DCOs can generate virtually any frequency from 0.5Hz to 1GHz with typical jitter below 150fs RMS from 12kHz to 20MHz.

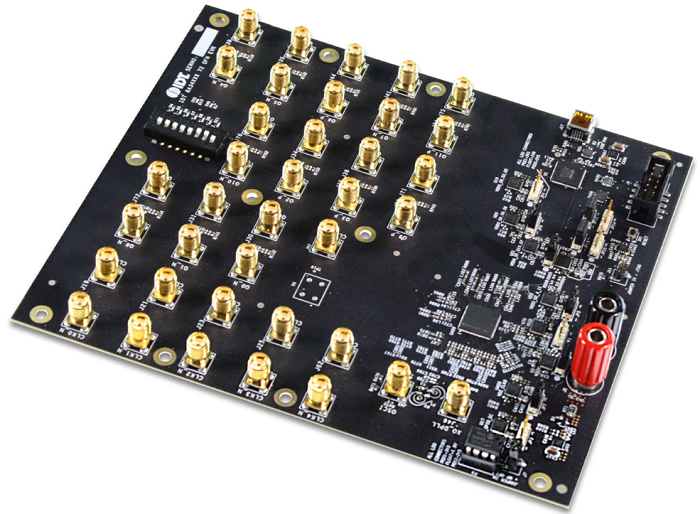

RC38612 - Evaluation Board
RC38612 - Evaluation Board
  • 5 differential clock inputs
  • 12 differential outputs
  • 2 serial port channels
  • On-board EEPROM
  • On-board miniOCXO
  • 16 GPIO controls
  • Selectable voltage controls

Documentation

= Featured Documentation
Type Title Date
Manual - Hardware
RC38612 Evaluation Kit Manual
PDF 10.61 MB
1 item

Design & Development

Software Downloads
Type Title Date
Software & Tools - Software
ClockMatrix API (cm-api)
Log in to Download ZIP 613 KB
1 item

Product Options

    Processing table
    Buy / Sample
    Part Number
    RC38612-EVK
    circleActive
    Samples Available
    Buy Now
    		Get Samples,
