Web Server Part 3

Overview

The Gadget Renesas GR-PEACH board can conduct the image processing of a camera. This project introduces using GR-PEACH as a web camera, using a security digital camera which is commercially available.

peach-sp-webserver-camera


Preparation

You will need a GR-PEACH board, USB cable (Micro B type), LAN cable, Micro SD card, digital camera, and a GR-PEACH AUDIO+CAMERA SHIELD released from CORE CORPORATION.

peach-sp-webserver-camera-prepare

peach-sp-webserver-camera-board

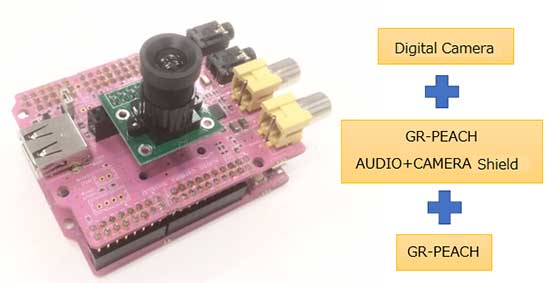

How to Connect with Digital Camera

peach-sp-webserver-camera-shield


Sample Program for Web Camera

First, save the "index.htm" file on the Micro SD for browser indication.

Right click the following link and execute “save the object in a file", for download.

Next, insert the Micro SD in an SD socket on the back side of GR-PEACH and copy to build the following sketch program in gr_sketch.cpp and write it down into GR-PEACH.


#include <Arduino.h>
#include "SD.h"
#include "HTTPServer.h"
#include "mbed_rpc.h"
#include "Camera.h"
#include "SdUsbConnect.h"

//#define USE_WIFI

#ifdef USE_WIFI
#include "ESP32Interface.h"
ESP32Interface network;
#define WLAN_SSID            ("xxxxxxxx")
#define WLAN_PSK             ("xxxxxxxx")
#define WLAN_SECURITY        NSAPI_SECURITY_WPA_WPA2
#else
#include "EthernetInterface.h"
EthernetInterface network;
#endif

/** Network setting **/
#define USE_DHCP               (1)
#if (USE_DHCP == 0)
#define IP_ADDRESS           ("192.168.11.2")     /* IP address      */
#define SUBNET_MASK          ("255.255.255.0")    /* Subnet mask     */
#define DEFAULT_GATEWAY      ("192.168.11.3")     /* Default gateway */
#endif

Camera camera(320, 240); // default CMOS CAMERA. In case of NTSC, create camera(0).
SdUsbConnect storage("storage");

static int snapshot_req(const char ** pp_data) {
    size_t size = camera.createJpeg();
    *pp_data = (const char*)camera.getJpegAdr();
    return size;
}

void setup(void) {

    Serial.begin(9600);
    Serial.println("********* PROGRAM START ***********");

    // SD & USB
    Serial.print("Finding strage..");
    storage.wait_connect();
    Serial.println("done");

    camera.begin();

    Serial.print("Network Setting up...\r\n");
#if (USE_DHCP == 0)
    network.set_dhcp(false);
    if (network.set_network(IP_ADDRESS, SUBNET_MASK, DEFAULT_GATEWAY) != 0) { //for Static IP Address (IPAddress, NetMasks, Gateway)
    Serial.println("Error");
    }
#endif
#ifdef USE_WIFI
    network.set_credentials(WLAN_SSID, WLAN_PSK, WLAN_SECURITY);
#endif
    if (network.connect() != 0) {
    return;
    }

    Serial.print("MAC Address is ");
    Serial.println(network.get_mac_address());
    Serial.print("IP Address is ");
    Serial.println(network.get_ip_address());
    Serial.print("NetMask is ");
    Serial.println(network.get_netmask());
    Serial.print("Gateway Address is ");
    Serial.println(network.get_gateway());
    Serial.println("Network Setup OK\r\n");

    SnapshotHandler::attach_req(&snapshot_req);
    HTTPServerAddHandler<SnapshotHandler>("/camera"); //Camera
    FSHandler::mount("/storage", "/");
    HTTPServerAddHandler<FSHandler>("/");
    HTTPServerAddHandler<RPCHandler>("/rpc");
    HTTPServerStart(&network, 80);

}

void loop() {
}

Operation Check for the Web Camera

To check the operation of the web camera after writing the program on GR-PEACH, start serial monitors such as Tera Term, then press the reset button on GR-PEACH.

The IP address acquired by DHCP will be shown, as can be seen in the image to the right.

peach-sp-webserver-camera-serialmonitor

Put the displayed IP address into the URL on the web browser.

The camera image will be reflected on the display as shown here.

peach-sp-webserver-camera
