ZMOD4510-EVK

Active

O3 and NO2 Gas Sensor Evaluation Kit

Order Now
Environmental Sensors Evaluation Kit Manual
NOTICE - The following device(s) are recommended alternatives:
NRND-EV - No Recommended Replacements Available - NRND

Overview

The ZMOD4510-EVK simplifies the evaluation of the ZMOD4510 Gas Sensor for O3 and NO2. This sensor module is supported with the firmware to operate the sensor in multiple modes: NO2 O3 and Ultra-Low Power (ULP O3) mode. Depending on the selected mode, the output can be displayed as a raw signal (resistance), a standardized AQI rating based on EPA and absolute ozone (O3) and NO2 concentration. To initiate the sensor, simply connect the EVK to a Windows PC via USB and utilize the provided evaluation software.

The ZMOD4510-EVK consists of the following:

  • ZMOD4510 and HS3001 Sensor Daughterboard
  • Environmental Sensor Communication (ESCom) Board
  • USB Cable
  • Quick Start Guide

Evaluation kit software (GUI) can be downloaded from the Software Downloads section on this page.

ZMOD4510 Evaluation Kit

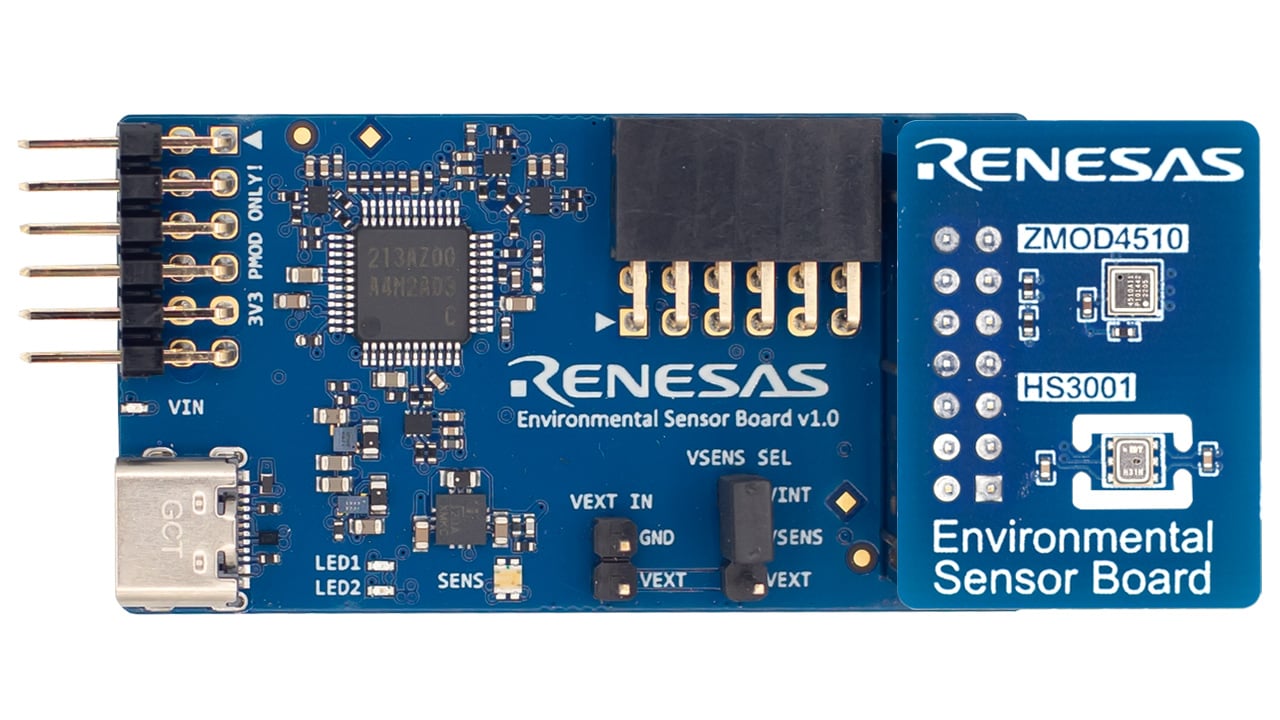

ZMOD4510 Evaluation Kit - Top
Environmental Sensor Communication (ESCom) Board - Top
Environmental Sensor Communication (ESCom) Board - Bottom

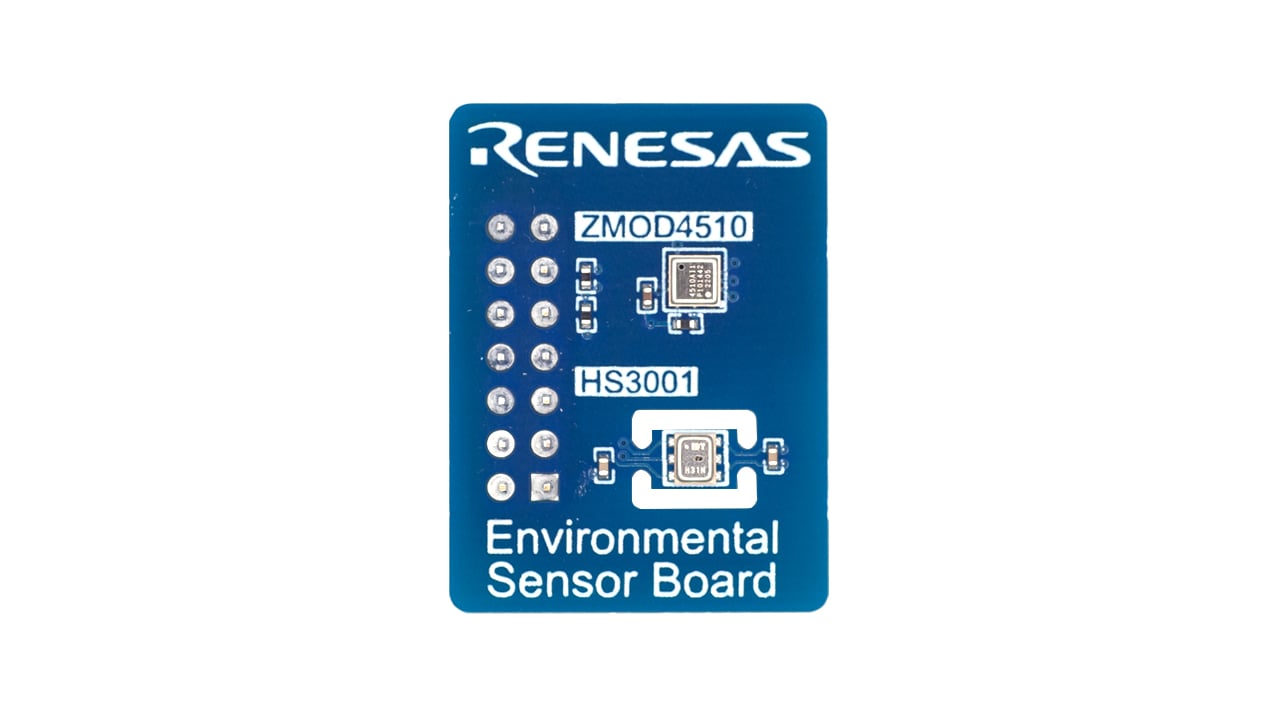

ZMOD4510 and HS3001 Sensor Daughterboard
ZMOD4510 Evaluation Kit
ZMOD4510 Evaluation Kit - Top
Environmental Sensor Communication (ESCom) Board - Top
Environmental Sensor Communication (ESCom) Board - Bottom
ZMOD4510 and HS3001 Sensor Daughterboard
  • Accelerates configuration and evaluation of Renesas environmental sensors
  • Supports all operational modes for each sensor, including ultra-low power and AI technology
  • Provides sensor-dependent algorithmic outputs, referencing international standards where applicable
  • Operates with Renesas-provided software, offering either executable graphical user interface (GUI) or programming examples
  • Allows for easy connection of Pmod™ boards for various environmental sensor derivatives and seamless integration with other sensor products via the I2C interface
  • Provides background information on air quality sensing and guidance on using sensor firmware
  • Additional pins available for measuring power consumption and supply voltage
