Overview

The HXT44120 is a single channel, low power, Linear PAM4 Directly-Modulated Laser (DML) driver for LR applications. It supports signaling rates up to 28GBuad or 56Gbps in PAM4 modulation. In conjunction with an individual DML, the HXT44120 handles the complete electrical-to-optical conversion, including CML input with equalization, laser bias and modulations, laser power control and supervision.

The HXT44120 also integrates a number of functions required for Automatic Power Control (APC), as well as internal and module temperature measurements and reporting. With an additional RSSI input, one can directly measure the module receive optical power and report it.

HXT44120 is designed as a directly DC-coupled die used in a TOSA application. Thus, one can reduce the number of discrete components for better RF performance, cost-effective and compact assemblies.

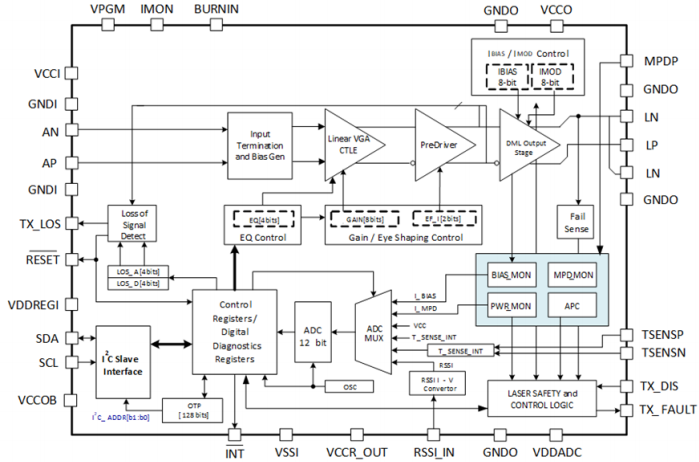

HXT44120 - Block Diagram
HXT44120 - Block Diagram
  • 290mW power dissipation per channel
  • Supports up to: IMOD = 60mAPP and IBIAS = 60mA with VCC = 3.3V for lower power
  • Integrated 12-bit ADC with 6-channel analog multiplexor front-end
  • Programmable 8-bit laser modulation and bias current control
  • Integrated bias monitor, transmit and receive power monitor capability
  • Automatic power control (APC)
  • Programmable input LOS and Squelch function with disable, transmit disable, and transmit fault indication
  • Programmable input CTLE
  • Integrated temperature sensor and input for external module temperature sensor
  • Interrupts with user selectable mask control
  • Input polarity inversion
  • Laser disable for IMOD and IBIAS
  • Integrated OTP for calibration
  • 2-wire interface control

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Temp. Grade
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Buy / Sample
    Part Number
    HXT44120-DNG
    circleActive
    memory
    view_in_ar
    Samples Available
    		 WAFER E WFP 0 Get Samples,
    HXT44120-EVB
    fast_forwardPreview
    memory
    view_in_ar
    Samples Available
    		 BOARD C Box 0 Get Samples,
