Overview

The HXT6104 VCSEL driver array is a key component for compact, robust, low-power optical transmitter modules. In conjunction with the VCSEL array, the chip handles the complete digital-to-optical conversion, including CML input, laser driver, drive control, and supervision. Standard silicon technology and a small number of additional components allow for cost-effective and compact assemblies.

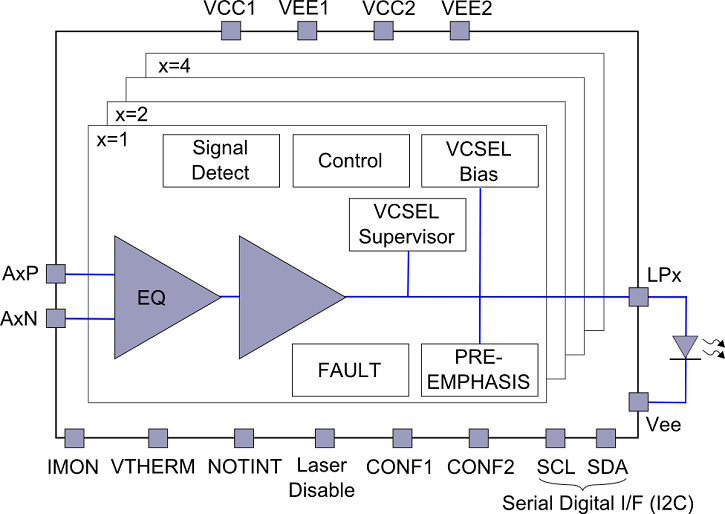

HXT6104 - Block Diagram
HXT6104 - Block Diagram
  • Low power consumption of 46mW per channel while delivering 5mA average and 5mA modulation current
  • Compatible with common cathode and isolated VCSEL arrays
  • 2-wire interface control and symmetric pad design maximize module design flexibility
  • 10 mA Average and 10 mA Modulation current max.
  • 12mA burn-in current max.
  • QSFP MSA compliant
  • InfiniBand QDR/FDR compliant
  • 40G Base-SR4 compliant

Documentation

= Featured Documentation
Type Title Date
Product Brief
HXT6104 Product Brief
PDF 243 KB
Product Change Notice
PCN# : 210015 Change of Waffle Pack Label Display
PDF 134 KB
Product Advisory
PA# : PA200003 - HXT Products Datasheet Electrical Characteristic and Errata Update
PDF 113 KB
3 items

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Temp. Grade
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    HXT6104-DNT
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		WAFER C WFP 0 Get Samples,
