Overview

The HXR44100 single channel Transimpedance Linear Amplifier is a member of IDT’s family of Optical Receiver Transmitter Array (ORTA) products for PAM4 modulation format targeted at the parallel optical links market. Together with a PIN discrete detector, high-capacity, high-availability optical link can be designed for next-generation Ethernet and datacom applications. The 3.3V SiGe device integrates the linear transimpedance preamplifier, the linear post-amplifier, and a versatile CML output stage for four optical channels.

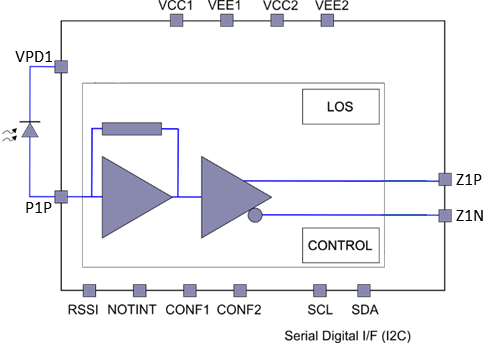

HXR44100 - Block Diagram
HXR44100 - Block Diagram
  • High receiver sensitivity for 10Km 56Gbps PAM4 signal
  • Up to 3mApp overload
  • Independent, per channel RSSI
  • 5kΩ typical differential gain
  • 500mVppd output voltage swing and adjustable output swing
  • Linear operation with internal AGC
  • 150mW per channel power consumption
  • QSFP56 MSA compliance
  • Optimized for isolated and common cathode photo-detector arrays from multiple vendors

Documentation

= Featured Documentation
Type Title Date
Datasheet - Short-form
HXR44100 Short-Form Datasheet
PDF 218 KB
Datasheet
HXR44100 Preliminary Datasheet
Log in to Download PDF 796 KB
2 items

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Temp. Grade
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Buy / Sample
    Part Number
    HXR44100-DNJ
    circleActive
    memory
    view_in_ar
    Samples Available
    		 WAFER E WFP 0 Get Samples,
    HXR44100-DNJ-EVB
    fast_forwardPreview
    memory
    view_in_ar
    		BOARD C Box 0
