Overview

The HXR44400 is an extension of a low-power, single-ended input, quad-channel linear Trans-Impedance Amplifier (TIA) array, and a member of the Optical Receiver Transmitter Array (ORTA) product family. Together with an array of PIN detectors or a group of detectors, the HXR44400 can be used to design a compact linear Receiver Optical Sub-Assembly (ROSA) for the next generation 200G optical transceivers with advanced modulation schemes. HXR44400 supports 28GBaud PAM4 applications.

This TIA operates in a 3.3V supply or 2.9V supply for low power consumption, providing exceptionally low input referred noise density, wide input optical power range, excellent linearity up to 3mA overload, and a high bandwidth. The device is designed with the patented adaptive biasing scheme.

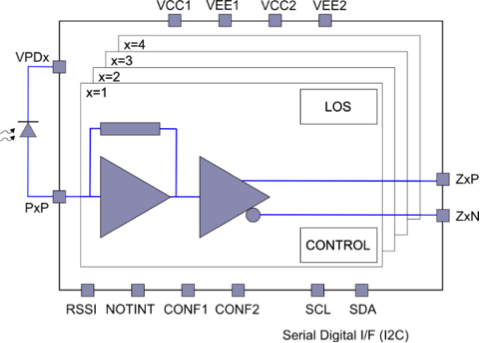

HXR44400 - Block Diagram
HXR44400 - Block Diagram
  • High receiver sensitivity for 56Gbps PAM4 Ethernet applications
  • Low-power mode
  • Power consumption as low as 140mW/ch
  • Industrial operating temperature range from -40 °C to 95 °C
  • Up to 5kΩ typical differential gain
  • Wide adjustable output voltage swing
  • Linear operation up to 3mAppSE overload with internal AGC
  • Up to 30GHz typical bandwidth
  • 9pA/√Hz input-referred current noise density
  • RSSI, LOS, and Rx Disable functions
  • I²C interface
  • IEEE 802.3bs compliance

Documentation

= Featured Documentation
Type Title Date
Datasheet - Short-form
HXR44400 Short-Form Datasheet
PDF 156 KB
Datasheet
HXR44400 Datasheet
Log in to Download PDF 757 KB
Product Change Notice
PCN# : 210015 Change of Waffle Pack Label Display
PDF 134 KB
End Of Life Notice
PDN# : CQ-20-07 End-of-Life (EOL) Process on Select Part Numbers
PDF 717 KB
4 items

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Temp. Grade
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Buy / Sample
    Part Number
    HXR44400-DNJ
    circleActive
    memory
    view_in_ar
    Samples Available
    		 WAFER E WFP 0 Get Samples,
    HXR44400-EVB
    fast_forwardPreview
    memory
    view_in_ar
    Samples Available
    		 BOARD C Box 0 Get Samples,
