Overview

The HXR6101 transimpedance limiting amplifier is targeted for the optical links market. Together with a PIN detector, high-capacity, high-availability optical links can be designed for datacom applications. The 3.3V SiGe device integrates the transimpedance pre-amplifier, the limiting post-amplifier, and a versatile CML output stage for a single 16Gb/s channel.

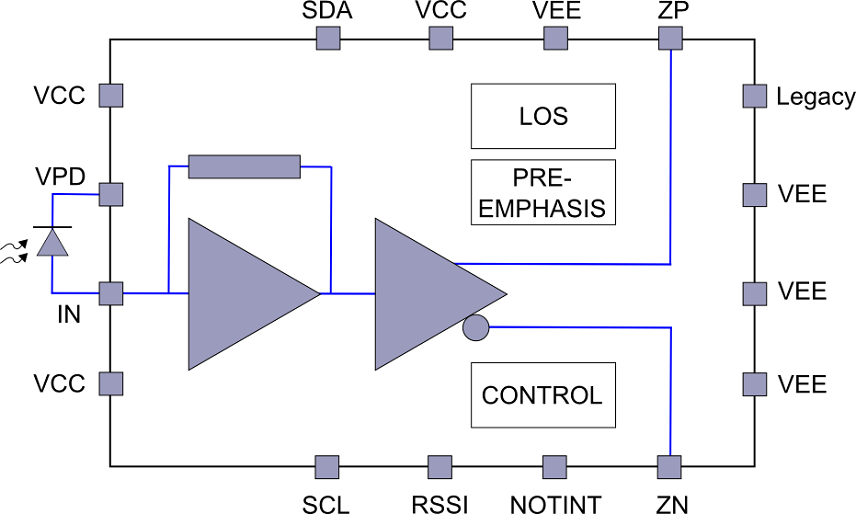

HXR6101 - Block Diagram
HXR6101 - Block Diagram
  • 20mApp receiver sensitivity for 10^-12 BER at 10.3Gbps
  • Better than 3mApp overload
  • 60mW power consumption with low power setting
  • Adjustable output swing size and pre-emphasis mode and signal detect threshold
  • A/D read-out of temperature, RSSI information

Documentation

= Featured Documentation
Type Title Date
Datasheet - Short-form
HXR6101 Short-Form Datasheet
PDF 244 KB
Product Change Notice
PCN# : 210015 Change of Waffle Pack Label Display
PDF 134 KB
2 items

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Temp. Grade
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    HXR6101-DNT
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		WAFER C WFP 0 30.18 Get Samples,
    HXR6101-EVB
    fast_forwardPreview
    memory
    view_in_ar
    Samples Available
    		 BOARD C Box 0 Get Samples,
