Overview

The HXR6112 Transimpedance Limiting Amplifier array is a member of IDT’s family of Optical Receiver Transmitter Array (ORTA) products targeted at the parallel optical links market. Together with a PIN detector array or discrete detectors, high-capacity, high-availability optical links can be designed for datacom applications. The 3.3V SiGe device integrates the transimpedance pre-amplifier, the limiting post-amplifier and a versatile CML output stage for twelve optical channels.

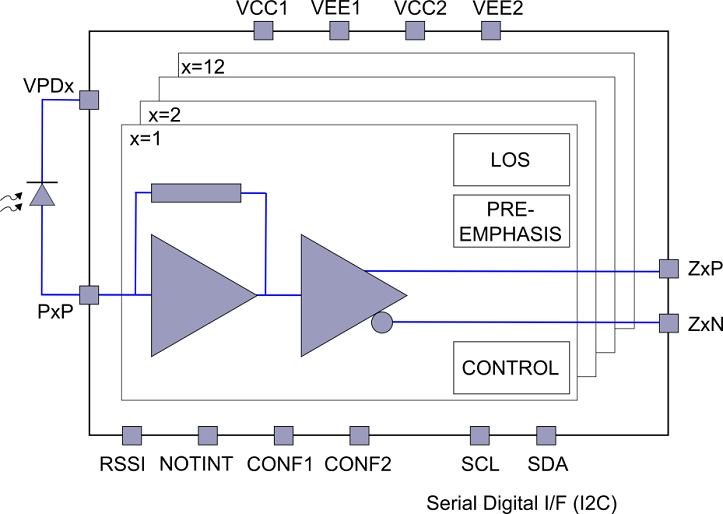

HXR6112 - Block Diagram
HXR6112 - Block Diagram
  • 20mApp receiver sensitivity for 10^-12 BER at 16Gbps
  • Better than 3mApp overload
  • 60mW per channel power consumption with low power setting
  • Adjustable output swing size and pre-emphasis and signal detect threshold
  • Independent RSSI
  • Optimized for isolated and common cathode photo-detector arrays from multiple vendors
  • Control lines accessible on both sides of the chip

Documentation

= Featured Documentation
Type Title Date
Product Brief
HXR6112 Product Brief
PDF 221 KB
Product Change Notice
PCN# : 210015 Change of Waffle Pack Label Display
PDF 134 KB
2 items

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Temp. Grade
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    HXR6112-DNT
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		WAFER C WFP 0 Get Samples,
    HXR6112-EVB
    fast_forwardPreview
    memory
    view_in_ar
    Samples Available
    		 BOARD C Box 0 Get Samples,
