Overview
Description

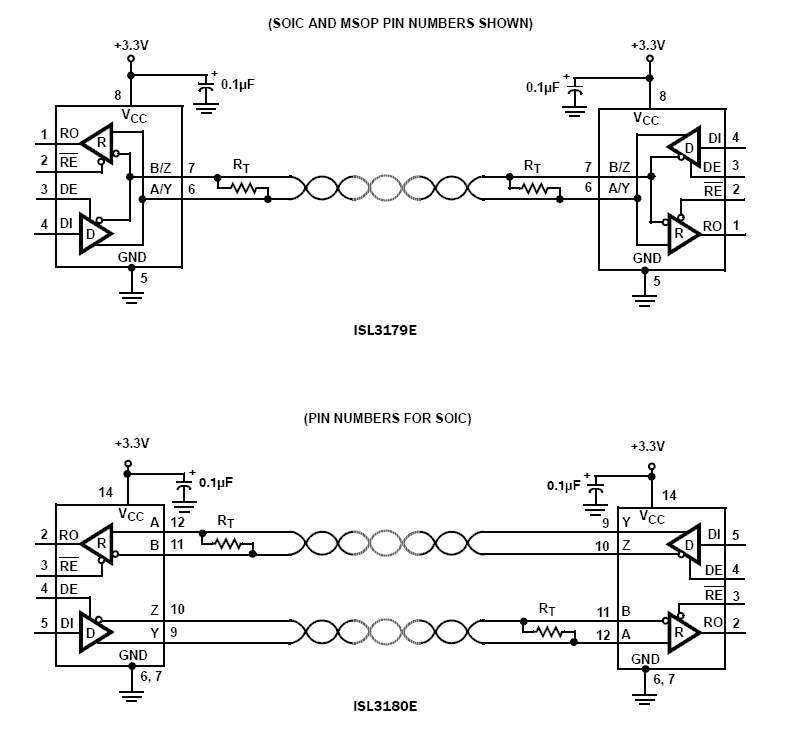

The ISL3179E and ISL3180E are high ESD protected, 3. 3V powered, single transceivers that meet both the RS-485 and RS-422 standards for balanced communication. Each device has low bus currents (+220μA/-150μA), so they present a “1/5 unit load” to the RS-485 bus. This allows up to 160 transceivers on the network without violating the RS-485 specification’s 32 unit load maximum, and without using repeaters. Receiver (Rx) inputs feature a “full fail-safe” design, which ensures a logic high Rx output if Rx inputs are floating, shorted, or terminated but undriven. The ISL3180E is configured for full duplex applications. The ISL3179E half duplex version multiplexes the Rx inputs and Tx outputs to allow a transceiver with an output disable function in 8 Ld packages. Hot plug circuitry ensures that the Tx and Rx outputs remain in a high impedance state while the power supply stabilizes.
Features
- High ESD protection on RS-485 I/O pins
- ISL3179E: ±16.5kV IEC61000
- ISL3180E: ±12kV HBM
- Class 3 HBM level on all other pins (ISL3179E): >9kV
- Specified for +125°C operation
- High data rates: up to 40Mbps
- 5V tolerant logic inputs
- 1/5 unit load allows up to 160 devices on the bus
- Full fail-safe (open, shorted, terminated/undriven) receiver
- Hot plug - Tx and Rx outputs remain three-state during power-up
- Low quiescent current: 4mA (max)
- Low current shutdown mode: 1μA (max)
- -7V to +12V common-mode input voltage range
- Three-state Rx and Tx outputs
- 16/16.5ns (max) Tx/Rx propagation delays; 1.5ns (max) skew
- Operates from a single +3.3V supply (10% tolerance)
- Current limiting and thermal shutdown for driver overload protection
- Pb-free (RoHS compliant)
Comparison
Applications
Applications
- Motor Controller/Position Encoder Systems
- Factory Automation
- Field Bus Networks
- Security Networks
- Building Environmental Control Systems
- Industrial/Process Control Networks
Design & Development
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Pkg. Type |
Carrier Type |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|
| Part Number | |||||
| SOICN | Tube | 3 | 1.461 | Get Samples, | |
| SOICN | Reel | 3 | |||
| SOICN | Reel | 3 | |||
ISL3179EFRZ Active Samples Available
Buy Now
|
DFN | Tube | 3 | Get Samples, | |
| DFN | Reel | 3 | |||
| DFN | Reel | 3 | |||
ISL3179EIBZ Active Samples Available
Buy Now
|
SOICN | Tube | 3 | 1.308 | Get Samples, |
| SOICN | Reel | 3 | 1.454 | ||
| SOICN | Reel | 3 | 2.364 | ||
ISL3179EIRZ Active Samples Available
Buy Now
|
DFN | Tube | 3 | Get Samples, | |
| DFN | Reel | 3 | 1.305 | ||
| DFN | Reel | 3 | 1.762 | ||
ISL3179EIUZ Active Samples Available
Buy Now
|
MSOP | Tube | 1 | 1.308 | Get Samples, |
| MSOP | Reel | 1 | |||
| MSOP | Reel | 1 |
