Overview

The QS3125 provides a set of four high-speed low-resistance CMOS switches connecting inputs to outputs without propagation delay and without generating additional ground bounce noise. The QS3125 is ideal for signal and control switching since the device adds no noise, ground bounce, propagation delay, or significant power consumption to the system. The QS3125 can also be used for analog switching applications such as video. The device operates at -40 °C to +85 °C.

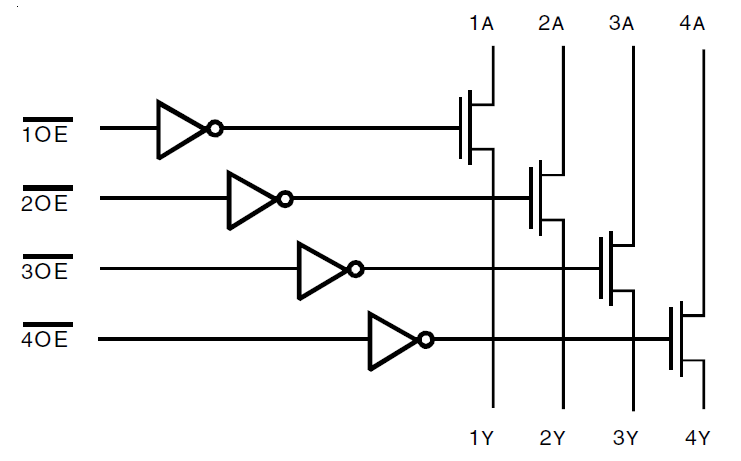

QS3125 - Block Diagram
QS3125 - Block Diagram
  • Enhanced N-channel FET with no inherent diode to Vcc
  • Pin compatible with the 74'125 function
  • Undershoot clamp diodes on all switch and control inputs
  • Hot-swapping, hot-docking
  • Voltage translation (5V to 3.3V)
  • Power conservation
  • Capacitance reduction and isolation (mass storage, workstations)
  • Logic replacement (data processing)
  • Clock gating
  • Bus isolation
  • Available in 16-pin QSOP and 14-pin SOIC packages

Documentation

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    QS3125QG
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		QSOP 16 C Yes Tube 1 0.3094 Get Samples,
    QS3125QG8
    circleActive
    memory
    view_in_ar
    Buy Now
    		QSOP 16 C Yes Reel 1 0.3612
