Overview
Description

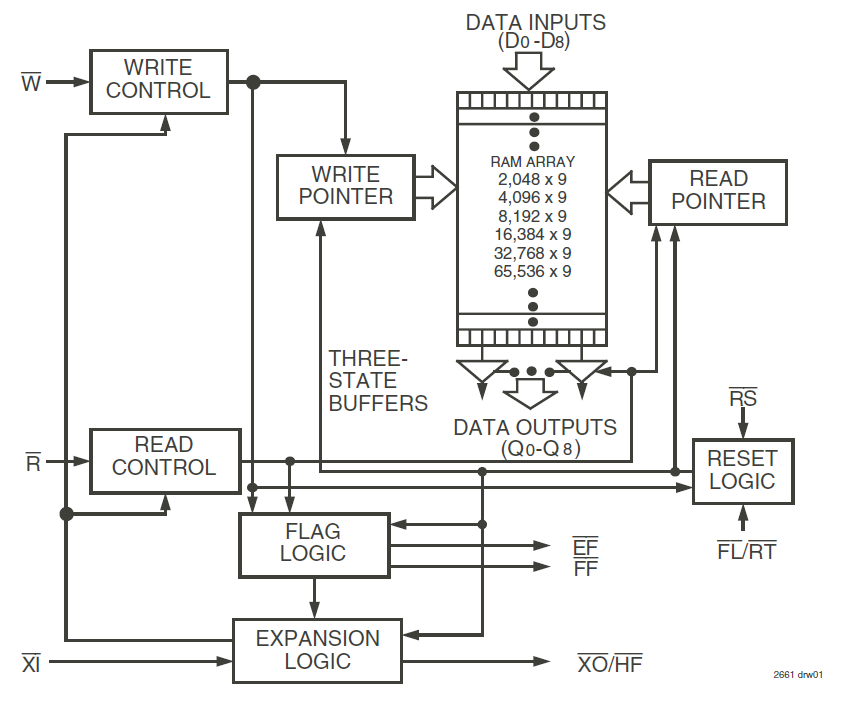

The 7204 is a 4K x 9 dual-port FIFO memory that loads and empties data on a first-in/first-out basis. The device uses Full and Empty flags to prevent data overflow and underflow. It has a Retransmit (RT) capability that allows for reset of the read pointer to its initial position when RT is pulsed LOW. It is designed for those applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.
Features
- Pin and functionally compatible with 720X family
- Low power consumption
- Ultra high speed—12ns access time
- Asynchronous and simultaneous read and write
- Fully expandable by both word depth and/or bit width
- Status Flags: Empty, Half-Full, Full
- Auto-retransmit capability
- MIL-STD-883, Class B available in 28 pin (300 & 600 mil) Cerdip and 32 pin LCC packages
- Industrial temperature range (–40C to +85C) is available
- Available in 28 pin SOIC, PDIP (300 & 600 mil), and 32 pin PLCC packages
Comparison
Applications
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|---|
| Part Number | ||||||||
| PLCC | 32 | C | Yes | Tube | 3 | 17.36 | Get Samples, | |
| PLCC | 32 | C | Yes | Reel | 3 | 17.05 | ||
| SOIC | 28 | C | Yes | Tube | 3 | 19.72 | Get Samples, | |
| SOIC | 28 | C | Yes | Reel | 3 | |||
| PDIP | 28 | C | Yes | Tube | 1 | 17.41 | Get Samples, | |
| SOIC | 28 | I | Yes | Tube | 3 | 19.72 | Get Samples, | |
| SOIC | 28 | I | Yes | Reel | 3 | 18.38 |
