Overview

The 72V02 is a 1K x 9 dual-port First-In, First-Out (FIFO) that operates at a Vcc between 3.0V and 3.6V. The device will load and empty data on a first-in/first-out basis. It uses Full and Empty flags to prevent data overflow and underflow. And, it has a Retransmit (RT) capability that allows for resetting the read pointer to its initial position when RT is pulsed LOW. It is designed for applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.

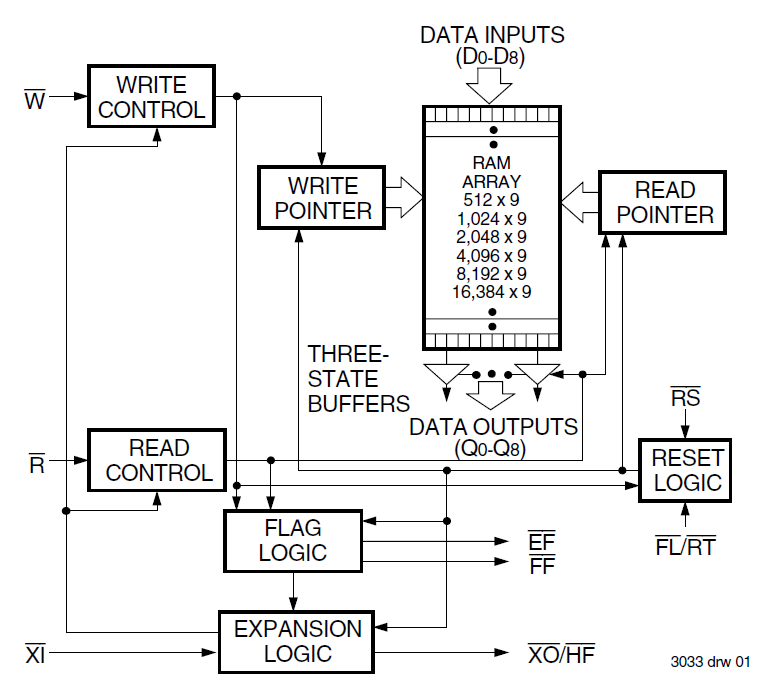

72V02 - Block Diagram
72V02 - Block Diagram
  • Functionally compatible with the 720x family
  • Low-power consumption
  • 15ns access time
  • Asynchronous and simultaneous read and write
  • Fully expandable by both word depth and/or bit width
  • Status flags: Empty, Half-Full, Full
  • Auto-retransmit capability
  • Available in a 32-pin PLCC package
  • Industrial temperature range (–40 °C to +85 °C) is available

Documentation

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    72V02L15JG
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		PLCC 32 C Yes Tube 3 12.17 Get Samples,
    72V02L15JG8
    circleActive
    memory
    view_in_ar
    		PLCC 32 C Yes Reel 3
    72V02L25JGI
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		PLCC 32 I Yes Tube 3 11.15 Get Samples,
    72V02L25JGI8
    circleActive
    memory
    view_in_ar
    		PLCC 32 I Yes Reel 3
