Overview

The 71V3578 3.3V CMOS SRAM is organized as 256K x 18. The 71V3578 SRAM contains write, data, address and control registers. The burst mode feature offers the highest level of performance to the system designer, as it can provide four cycles of data for a single address presented to the SRAM.

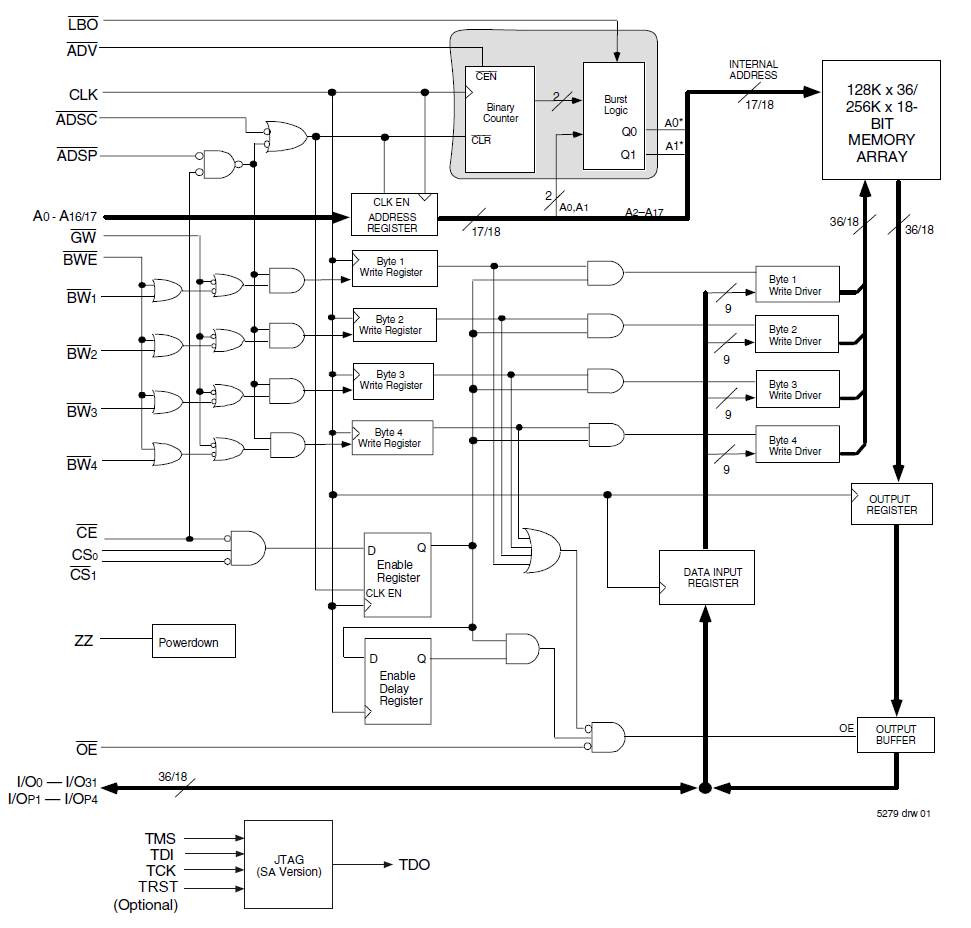

71V3578 - Block Diagram
71V3578 - Block Diagram
  • High system speed 150MHz (3.8ns clock access time)
  • LBO input selects interleaved or linear burst mode
  • Self-timed write cycle with global write control (GW), byte write enable (BWE), and byte writes (BWx)
  • 3.3V core power supply
  • Power down controlled by ZZ input
  • 3.3V I/O
  • Available in 100 -pin TQFP package

Documentation

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    71V3578S133PFG
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		TQFP 100 C Yes Tray 3 6.684 Get Samples,
    71V3578S150PFG
    circleActive
    memory
    view_in_ar
    Samples Available
    		 TQFP 100 C Yes Tray 3 7.134 Get Samples,
    71V3578S150PFGI
    circleActive
    memory
    view_in_ar
    Samples Available
    		 TQFP 100 I Yes Tray 3 10.79 Get Samples,
