Overview

The 54FCT162244T 16-bit high-speed and low-power buffer/line driver is for bus interface or signal buffering applications and has three-state controls allowing independent 4-bit, 8-bit, or combined 16-bit operation. The 54FCT162244T operates at -55 °C to +125 °C. For the commercial version, see 74FCT162244T.

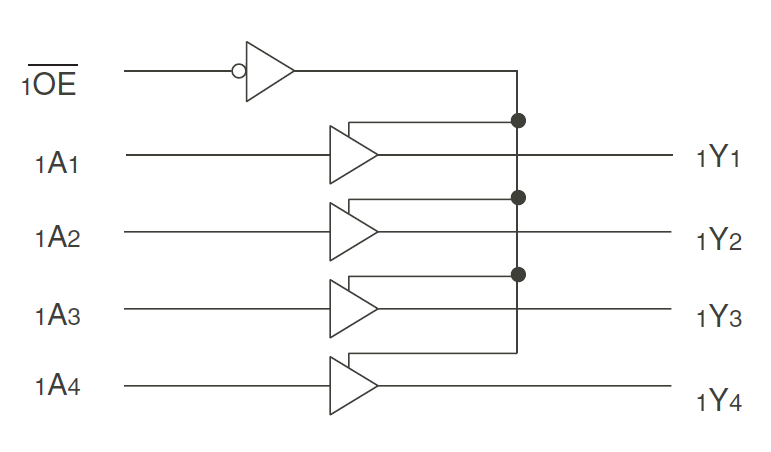

54FCT162244T - Block Diagram
54FCT162244T - Block Diagram
  • Standard, A, and C speeds
  • Typical tSK(o) (output skew) < 250ps
  • Low input and output leakage <1µA (max.)
  • ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
  • Balanced output drivers:
  • ±16mA (military)
  • Reduced system switching noise
  • Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V,
  • TA = 25 °C
  • Available in a 48-pin CERPACK package
