Overview

The 74FCT162823T 18-bit high-speed, low-power bus interface register with clock enable (xCLKEN) and clear (xCLR) controls are ideal for parity bus interfacing in high-performance synchronous systems. The device can operate as two 9-bit registers or one 18-bit register. The 74FCT162823T offers low ground bounce, minimal undershoot, and controlled output fall times – reducing the need for external series terminating resistors. The 74FCT162823T operates at -40 °C to +85 °C.

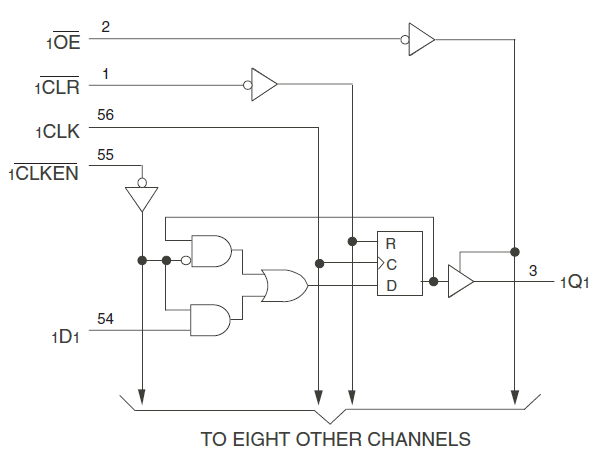

74FCT162823T - Block Diagram
74FCT162823T - Block Diagram
  • A and C speeds
  • High-speed, low-power CMOS
  • Typical tSK(o) (output skew) < 250ps
  • Low input and output leakage ≤1µA (max.)
  • VCC = 5V ±10%
  • Balanced output drivers of ±24mA
  • Reduced system switching noise
  • Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V, TA = 25 °C
  • Available in 56-pin SSOP and TSSOP packages

Documentation

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    74FCT162823CTPVG8
    circleActive
    memory
    view_in_ar
    		SSOP 56 C Yes Reel 3
